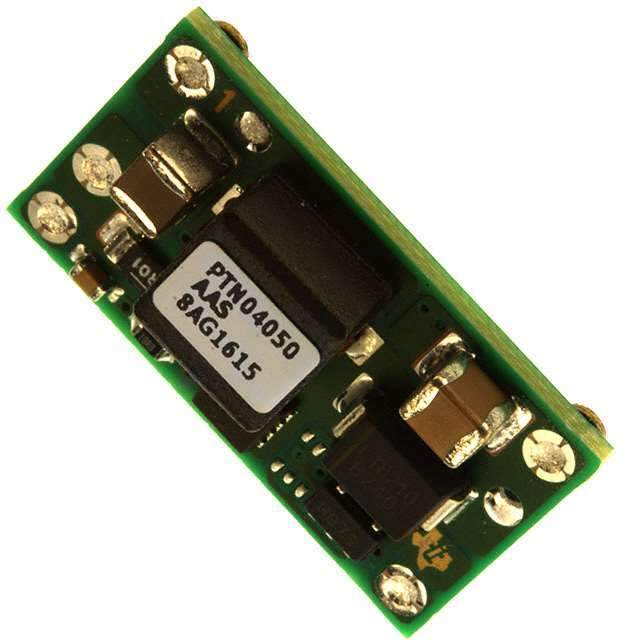

The PTN04050AAS is a high-performance, adjustable step-up DC-DC converter module from Texas Instruments. Designed to meet the needs of a wide range of applications, this module provides a flexible solution for converting lower voltage inputs to higher voltage outputs, with an emphasis on efficiency and reliability.

Key Features

• Wide Input Voltage Range: The PTN04050AAS operates with an input voltage range of 2.95 V to 3.65 V, making it suitable for a variety of low voltage applications.
• Adjustable Output Voltage: This module offers an adjustable output voltage range of 5 V to 15 V, providing versatility for different circuit requirements.
• High Efficiency: With an efficiency of up to 90%, the PTN04050AAS ensures minimal power loss during voltage conversion, which is critical for battery-powered and energy-sensitive applications.
• Compact Size: The small footprint of the module (9.0 mm x 11.4 mm x 2.5 mm) is ideal for space-constrained designs.
• Integrated Shielding: The module comes with integrated shielding, which reduces electromagnetic interference (EMI), simplifying compliance with regulatory standards.

Applications

The PTN04050AAS is suitable for a broad range of applications, including but not limited to:

• Telecommunications Infrastructure
• Industrial Equipment
• Networking Equipment
• Portable Devices
• Test and Measurement Systems

Quality and Support

As with all Texas Instruments products, the PTN04050AAS is manufactured to high standards, ensuring reliability and performance. For designers and engineers, TI provides extensive technical support, including datasheets, reference designs, and customer service to assist with the integration of the module into various systems.

Ordering Information

The PTN04050AAS is available in a surface-mount package and can be ordered through Texas Instruments' official distributors and online store. For detailed product specifications and ordering options, please refer to the official Texas Instruments website or contact their sales team directly.
