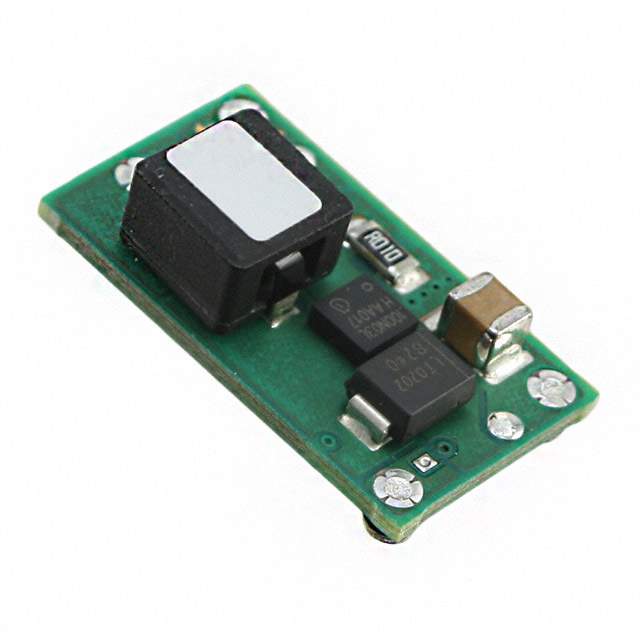

The PTN04050CAS is a high-performance, adjustable step-up or step-down integrated voltage converter module from Texas Instruments. This compact power solution is designed to provide exceptional flexibility, efficiency, and reliability for a wide range of applications. The PTN04050CAS comes in a space-saving surface mount package, making it ideal for space-constrained applications.

Key Features

• Wide Input Voltage Range: The module supports a broad input voltage range from 2.95V to 3.65V, making it versatile for various power supply configurations.
• Adjustable Output Voltage: Users can adjust the output voltage from -15V to -3V or 3.3V to 15V, providing a wide array of power options for different circuit requirements.
• High Efficiency: With an efficiency of up to 90%, the PTN04050CAS ensures minimal power loss and heat generation, extending the life of the product and the devices it powers.
• Integrated Inductor: The module includes an integrated inductor to reduce external component count and simplify design complexity.
• Thermal Shutdown: Built-in thermal shutdown feature protects the module and the connected devices from overheating, enhancing system safety.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the module operates only when the input voltage is within the acceptable range, preventing potential damage from low voltage conditions.

Applications

The PTN04050CAS is suitable for a variety of applications including, but not limited to:

• Telecommunications equipment
• Industrial systems
• Data acquisition systems
• Portable devices
• Battery-powered applications

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the PTN04050CAS is no exception. It is designed to meet the stringent requirements of industrial and commercial applications, ensuring a reliable power source for critical systems.
