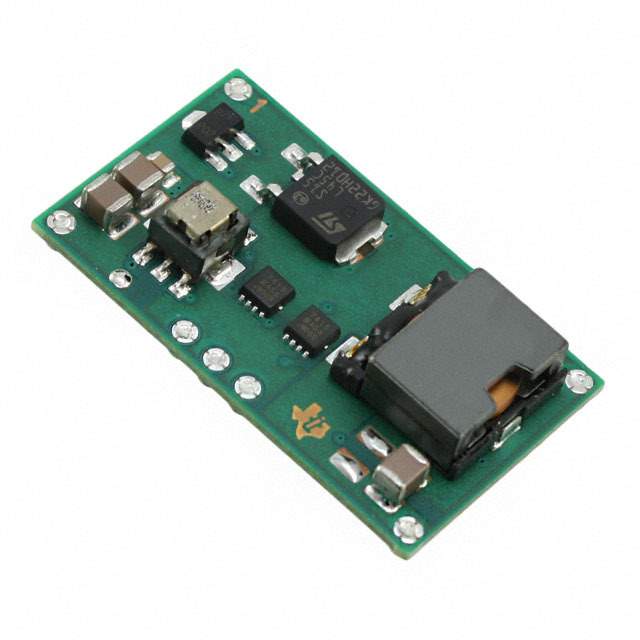

PTN78020WAZ Real Image
Same model may have multiple batches, images only for reference.

PTN78020WAZ

Part No PTN78020WAZ
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW 2.5-12.6V 6A SMD
Datasheet
PTN78020WAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTN78020W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 7V
Voltage - Input (Max) 36V
Voltage - Output 1 2.5 ~ 12.6 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 7-SMD Module
Size / Dimension 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94%
Power (Watts) - Max 76W
Win Source Part Number 004478-PTN78020WAZ
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, HVAC, Test & Measurement, Medical
Ultra Librarian 3D Model Ultra Librarian PTN78020WAZ CAD Model

Description

The PTN78020WAZ is a high-performance, integrated circuit product from Texas Instruments, a globally recognized leader in the field of semiconductor technology.

  • Feature: Wide-input voltage adjustable power module.
  • Input Voltages: 14.4V to 36V
  • Output Voltage: Adjustable output voltage from -6.0V to -15V
  • Efficiency: Up to 96%
  • Package: Compact, 31-pin through-hole package
  • Protection: Over-temperature and over-current protection
  • Control: On/off inhibit control
  • Thermal Management: High thermal performance package
