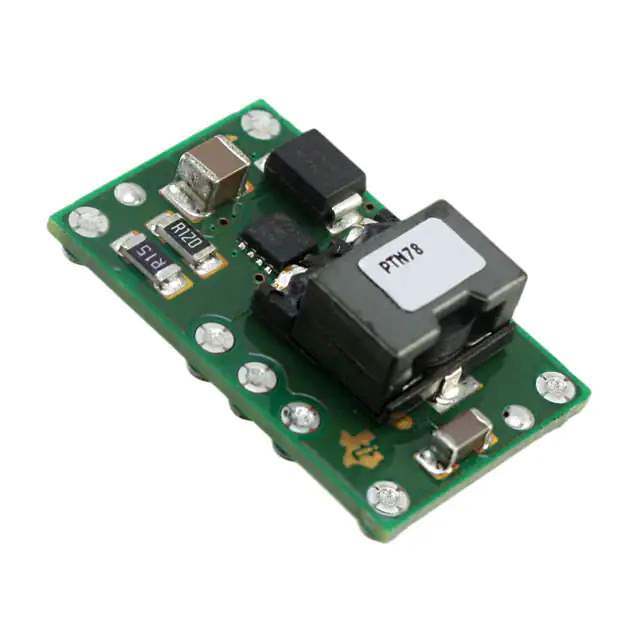

Introducing the PTN78060WAZ from Texas Instruments

The PTN78060WAZ is an innovative power module designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This high-performance, wide-input voltage, adjustable step-down power module is part of the PTN78060 series, which is renowned for its flexibility and efficiency in a variety of applications.

One of the key features of the PTN78060WAZ is its wide input voltage range, which spans from 7V to 36V, making it an ideal choice for systems that experience fluctuations in supply voltage or that require compatibility with a variety of power sources. This versatility is particularly useful in industrial, telecom, and computing applications where stable power is crucial for reliable operation.

The output voltage of the PTN78060WAZ can be adjusted from 2.5V to 12.6V, allowing for customization according to the specific needs of the application. With an output current of up to 3A, this power module can support a range of power-intensive tasks. Additionally, the high efficiency of up to 95% ensures minimal power loss, which is critical for applications where energy consumption is a concern.

Designed with practicality in mind, the PTN78060WAZ comes in a compact, horizontally mounted SIP (single in-line package) that is easy to install in space-constrained environments. The integration of advanced thermal management features allows it to operate reliably over a temperature range of -40°C to 85°C, making it suitable for harsh industrial conditions.

The module also includes built-in features such as overcurrent and overtemperature protection, which safeguard the device and the system it powers from potential damage due to abnormal operating conditions. This emphasis on protection and reliability is consistent with Texas Instruments' commitment to high-quality, durable products.

In summary, the PTN78060WAZ from Texas Instruments is a robust and adaptable power module that offers a combination of wide input voltage range, adjustable output voltage, high efficiency, and compact design, making it a superior choice for designers looking to simplify power supply design and enhance system performance.
