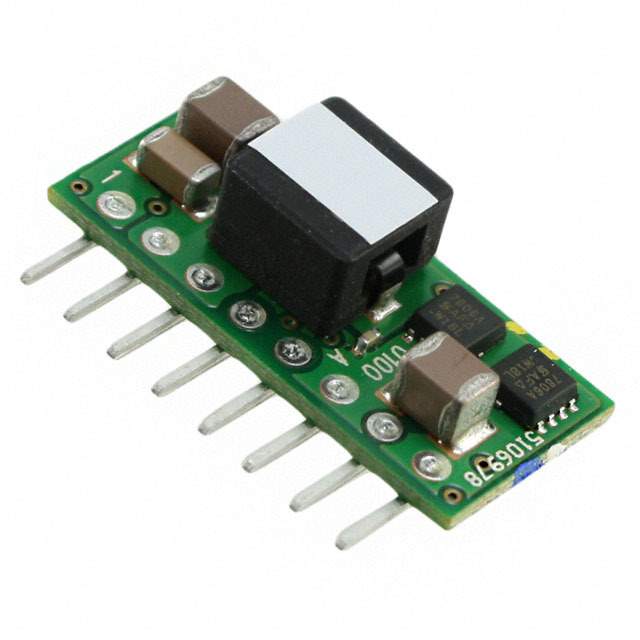

PTV03010WAH Real Image
Same model may have multiple batches, images only for reference.

PTV03010WAH

Part No PTV03010WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP 3.3VIN 8A VERT 8-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 70
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTV03010W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.95V
Voltage - Input (Max) 3.65V
Voltage - Output 1 0.8 ~ 2.5 V
Current - Output (Max) 8A
Applications ITE (Commercial)
Features With UVLO
Mounting Style Through Hole
Package 8-SIP Module
Size / Dimension 0.90" L x 0.33" W x 0.40" H (22.9mm x 8.4mm x 10.2mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 93%
Power (Watts) - Max 20W
Catalog PTV03010W Series
Win Source Part Number 042239-PTV03010WAH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTV03010WAH CAD Model

Description

The PTV03010WAH from Texas Instruments is a high-performance, integrated circuit (IC) power module that is designed to deliver high efficiency and excellent thermal performance in a wide range of applications.

  • Manufacturer: Texas Instruments
  • Module Type: Non-isolated DC-DC converter
  • Input Voltage Range: 2.4V to 5.5V
  • Output Voltage: Adjustable from 0.75V to 3.6V
  • Output Current: Up to 10A
  • Efficiency: Up to 96%
  • Output Ripple and Noise: Low
  • Package: Compact, surface-mount
  • Pin Configuration: Industry-standard
  • Protection Features: Over-temperature protection, under-voltage lockout, output over-current protection
  • Applications: Telecommunications equipment, servers, storage systems, industrial equipment, medical devices, battery-powered devices, distributed power architectures, point-of-load (POL) applications
