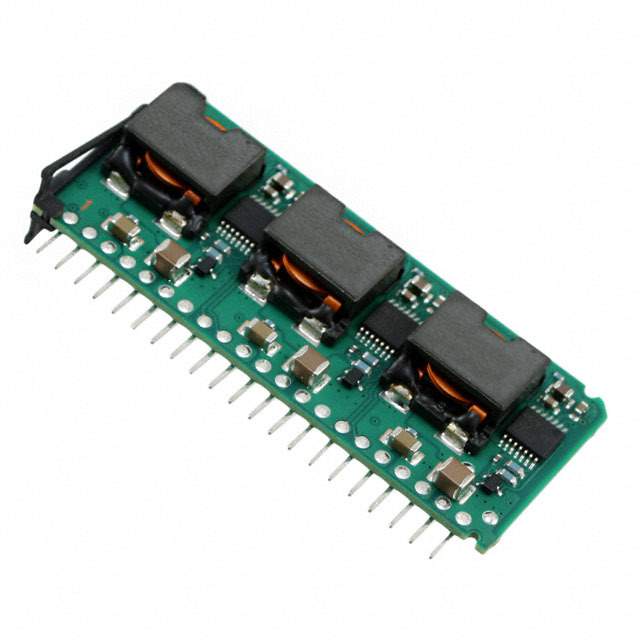

Overview of Texas Instruments PTV08T250WAH

The Texas Instruments PTV08T250WAH is a high-performance, non-isolated module power converter that offers a wide input voltage range and a fully adjustable output voltage. This power module is part of the PTM (Power Train Module) family, designed to provide efficient, reliable power conversion in a variety of applications, ranging from telecommunications and computing to industrial systems. Its small size and high power density make it an excellent choice for space-constrained applications.

Key Features

• Wide Input Voltage Range: The PTV08T250WAH operates over a broad input voltage range of 4.5V to 14V, making it versatile for use with various supply voltages.
• Adjustable Output Voltage: Users can set the output voltage from 0.7V to 5.5V to meet the needs of their specific application, providing great flexibility.
• High Efficiency: With an efficiency of up to 95%, this power module helps to minimize power loss and heat generation, thus improving system reliability and performance.
• Output Current: The device can deliver up to 8A of continuous output current, which is suitable for high-power applications.
• Thermal Performance: The PTV08T250WAH comes with an integrated heat sink and provides excellent thermal performance, ensuring stable operation even at full load.
• Protection Features: It includes over-current protection, under-voltage lockout, over-temperature protection, and short-circuit protection to safeguard the module and the system it powers.
• Small Footprint: The compact size of the module is ideal for space-sensitive applications without sacrificing power or efficiency.

Applications

The PTV08T250WAH is a versatile power solution that can be used in a wide array of applications, including:

• Telecommunications equipment
• Networking hardware such as routers and switches
• Servers and storage systems
• Industrial control systems
• Test and measurement equipment

With its robust design and comprehensive set of features, the Texas Instruments PTV08T250WAH power module is an excellent choice for designers looking for a high-performance, adjustable power supply solution that can be easily integrated into a wide range of electronic systems.
