REG103GA-2.5/2K5

Part No REG103GA-2.5/2K5
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear

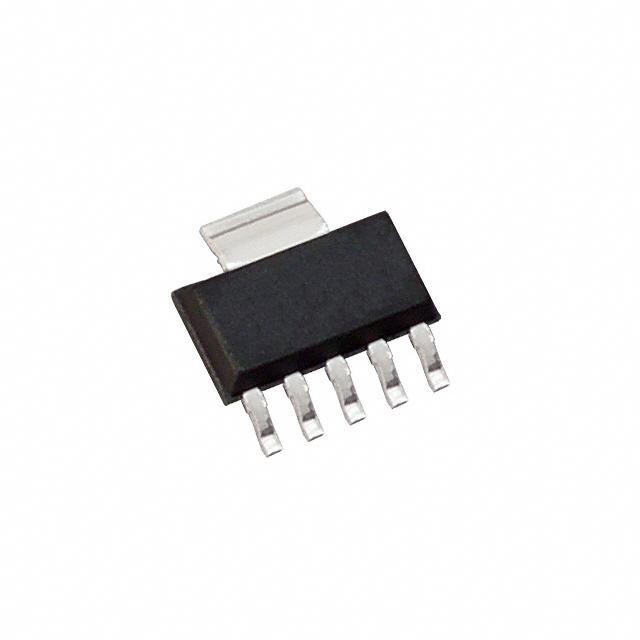

Description IC REG LDO 2.5V 0.5A SOT223-6 / LDO Regulator Pos 2.5V 0.5A 6-Pin(5+Tab) SOT-223 T/R
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Reel package
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 15V
Output Voltage 2.5V
Voltage Dropout (Maximum) 0.28V @ 500mA
Output Current 500mA
Operating Supply Current 0.7mA ~ 1.3mA
PSRR 65dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package SOT-223-6
Manufacturer Package SOT-223-6
Win Source Part Number 793104-REG103GA-2.5/2K5
Popularity Medium
Supply and Demand Status Limited
Family Name REG103-25
Introduction Date October 31, 2005
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian REG103GA-2.5/2K5 CAD Model

Description

The REG103GA-2.5/2K5 is a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments, designed to deliver a well-regulated 2.5V output from a variable input voltage source. This regulator is ideal for a wide range of applications, including battery-powered devices, portable media players, and other low-voltage electronics that require a stable power supply.

Key Features

  • Output Voltage: Fixed 2.5V output with high accuracy.
  • Dropout Voltage: Low dropout performance ensures efficient operation, even with input voltages close to the output voltage.
  • Output Current: Capable of delivering up to 500mA of continuous output current.
  • Thermal Protection: Built-in thermal shutdown protection safeguards the device from overheating.
  • Noise Reduction: Low output noise makes it suitable for sensitive RF and analog circuitry.
  • Stable with Low-ESR Capacitors: Stable with ceramic capacitors, which reduces the size and cost of the external components.

Applications

The REG103GA-2.5/2K5 is versatile and can be used in a variety of applications. Some common uses include:

  • Portable electronics
  • Wireless communication devices
  • Power supplies for DSPs and microcontrollers
  • Linear power supplies
  • Post-regulation for switching power supplies

Package and Quality

The REG103GA-2.5/2K5 is available in a compact SOT-223 package, which is suitable for surface-mount technology (SMT) and occupies minimal board space. Texas Instruments is known for its commitment to quality, and this product is no exception. It is manufactured under strict quality control standards, ensuring reliable performance and longevity in the field.

Conclusion

With its precise voltage regulation, low dropout, and robust protection features, the REG103GA-2.5/2K5 from Texas Instruments is an excellent choice for designers looking for a reliable LDO voltage regulator for their electronic projects. Its compatibility with low-ESR capacitors and low noise output further enhance its suitability for a wide range of applications.
