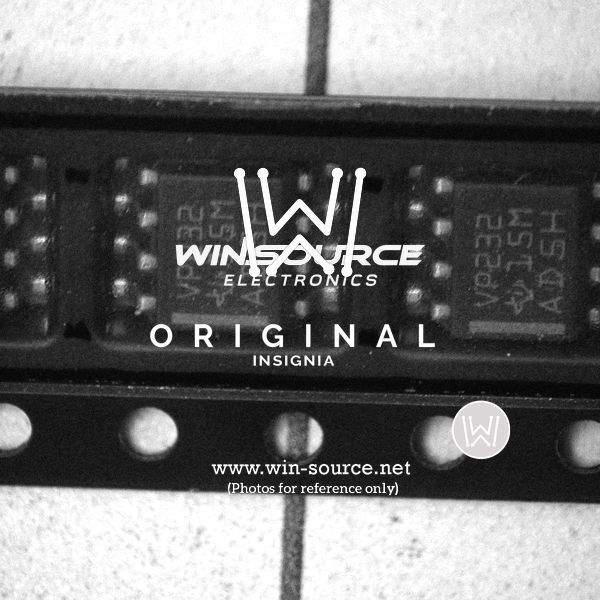

Product Overview: SN65HVD230 CAN Bus Transceiver

The SN65HVD230 from Texas Instruments is a robust, high-performance CAN (Controller Area Network) transceiver that facilitates communication in automotive and industrial applications. This device is designed to interface between a CAN protocol controller and the physical two-wire CAN bus. The transceiver provides differential transmit and receive capability to the bus and is fully compatible with the ISO 11898-2 standard.

Key Features

• High-Speed Operation: The SN65HVD230 is capable of transmission rates up to 1 Mbps, making it suitable for high-speed data transfer requirements of modern networks.
• Low Power Consumption: It features a low current standby mode which helps in power-sensitive applications by reducing power consumption when the network is idle.
• Protection Features: Equipped with thermal shutdown and cross-wire protection, this device ensures reliable operation under harsh conditions. It also provides protection against voltage transients such as those defined in the ISO 7637.
• Bus-Pin ESD Protection: The SN65HVD230 offers an Electrostatic Discharge (ESD) protection for the bus pins, exceeding 16 kV HBM (Human Body Model).
• Wide Operating Temperature Range: With an operational temperature range from -40°C to 125°C, this transceiver is designed to perform in extreme environmental conditions.

Applications

The SN65HVD230 CAN transceiver is ideal for a variety of applications, including:

• Automotive Networks
• Industrial Automation Systems
• Building Automation
• Medical Equipment
• Heavy Machinery

Quality and Reliability

As with all Texas Instruments products, the SN65HVD230 is manufactured to the highest quality standards, ensuring both reliability and performance for critical systems. Whether it's automotive safety, industrial control, or robust communication needs, this CAN transceiver stands as a top choice for professionals seeking a high-quality, reliable solution.
