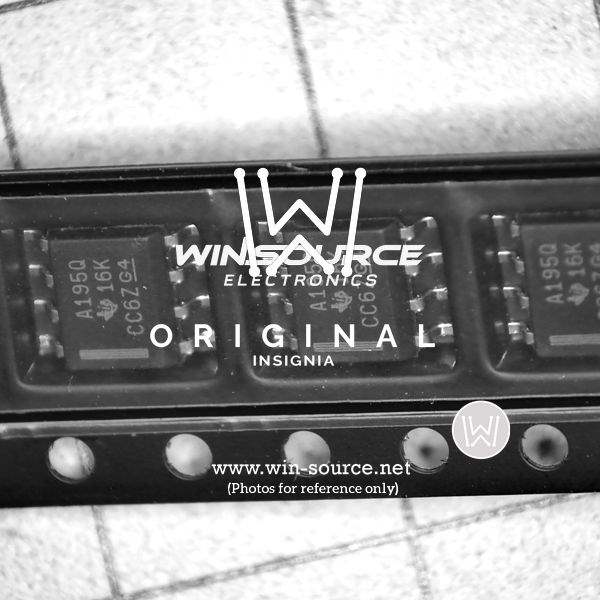

The SN65HVDA195QDRQ1, from Texas Instruments, is a state-of-the-art automotive CAN (Controller Area Network) transceiver that offers robust communication capabilities for onboard networking. Designed to facilitate data exchange between microcontrollers and devices within vehicles without a host computer, it is an essential component in modern automotive applications.

Key Features

• High-Speed CAN Interface: Capable of transmitting and receiving at speeds up to 1 Mbps, the SN65HVDA195QDRQ1 is suitable for high-speed CAN applications.
• Bus Fault Protection: The device provides protection against faults on the CAN bus lines, up to ±36V, ensuring reliable operation in harsh automotive environments.
• Low-Power Mode: With a low-power standby mode, the transceiver helps reduce the power consumption of electronic systems when they are not actively communicating.
• Thermal Shutdown: The integrated thermal shutdown feature prevents the device from overheating, thus safeguarding the transceiver and the system it serves.
• Wide Operating Temperature Range: The device is designed to operate over a broad temperature range from -40°C to +125°C, making it suitable for various automotive environments.

Applications

The SN65HVDA195QDRQ1 is ideal for a wide array of automotive applications, including:

• Body Control Modules
• Powertrain Systems
• Advanced Driver Assistance Systems (ADAS)
• Infotainment Systems
• Diagnostic Interfaces

Quality and Reliability

As a product designed for the automotive industry, the SN65HVDA195QDRQ1 meets stringent quality standards. It is qualified for use in automotive applications in accordance with the AEC-Q100 standards, which test for reliability under extreme conditions. The device is available in a compact 8-pin SOIC package, making it suitable for space-constrained applications.

With its robust feature set and compliance with automotive industry standards, the SN65HVDA195QDRQ1 from Texas Instruments is an excellent choice for designers looking to implement a reliable CAN communication system in their automotive projects.
