SN74AUP1G240DPWR Single Buffer Gate by Texas Instruments

The SN74AUP1G240DPWR is a high-performance, single buffer gate integrated circuit designed and manufactured by Texas Instruments (TI). This device is part of TI's advanced ultra-low power (AUP) family, which is engineered to provide optimal performance with minimal power consumption. The SN74AUP1G240DPWR is particularly suitable for battery-operated and power-sensitive applications due to its low-power characteristics.

Key Features

• Low Static-Power Consumption: The device operates with a very low static power consumption (ICC), which is a critical feature for extending battery life in portable devices.
• Low Dynamic-Power Consumption: It also exhibits low dynamic power consumption, contributing to overall energy efficiency during operation.
• Wide Operating Voltage Range: The SN74AUP1G240DPWR operates over a broad voltage range from 0.8 V to 3.6 V, making it versatile for various applications.
• Low Input Capacitance: With a low Ci (input capacitance), the device ensures a reduced loading effect on the driving circuit.
• High-Speed Operation: Despite its low-power design, the buffer gate offers high-speed operation, which is essential for high-performance computing and communications systems.
• ESD Protection: The device includes robust electrostatic discharge (ESD) protection, ensuring durability and reliability in challenging environments.

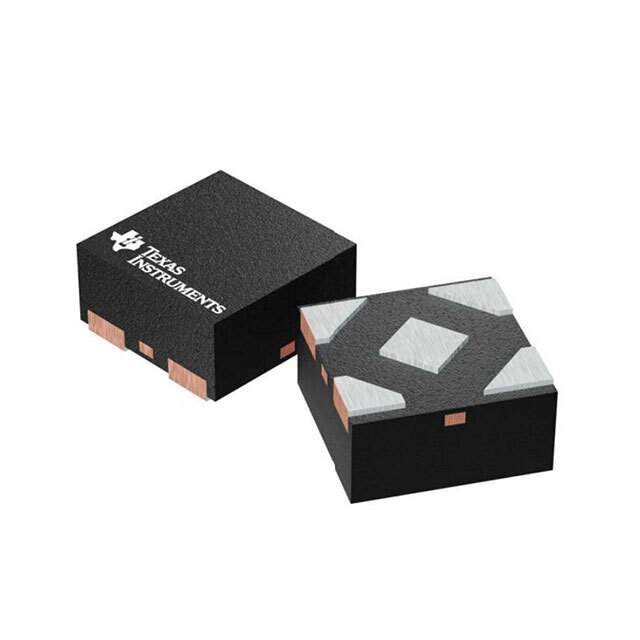

• Space-Saving Package: The SN74AUP1G240DPWR comes in a small-outline package (PWR suffix), which is ideal for space-constrained applications.

Applications

The versatility of the SN74AUP1G240DPWR makes it an excellent choice for a wide range of applications, including:

• Smartphones and tablets
• Wearable technology
• Portable medical devices
• Energy management systems
• Low-power microcontrollers and processors
• Logic level translation

With its combination of low-power operation, wide voltage range, and high-speed performance, the SN74AUP1G240DPWR from Texas Instruments is an ideal solution for designers looking to optimize power efficiency without compromising on performance. Its small form factor also makes it an excellent choice for modern, compact electronic designs.
