SN74AUP1G32DPWR from Texas Instruments

The SN74AUP1G32DPWR is a high-performance, single 2-input positive-OR gate integrated circuit from Texas Instruments, designed to operate with a very low power consumption. This advanced ultra-low power (AUP) series device is optimized for use in battery-powered and portable applications where conserving power is of paramount importance.

Key Features:

• Low Static Power Consumption: The device boasts a very low static power consumption (ICC) of only 0.9 µA maximum, making it incredibly energy-efficient.
• Operational Voltage Range: It operates over a wide voltage range of 0.8 V to 3.6 V, providing design flexibility for various applications and compatibility with low-voltage microprocessors and microcontrollers.
• High-Speed Operation: With a typical tpd of 3.7 ns at 3.3 V, the SN74AUP1G32DPWR ensures high-speed operation, making it suitable for high-frequency signal processing tasks.
• I/O Tolerance: The inputs accept voltages up to 5.5 V, allowing for down translation to VCC and providing the capability to interface with higher voltage logic levels without additional level shifters.
• ESD Protection: It includes robust ESD protection, ensuring the device is safeguarded against electrostatic discharge events, with HBM protection exceeding JESD 22.

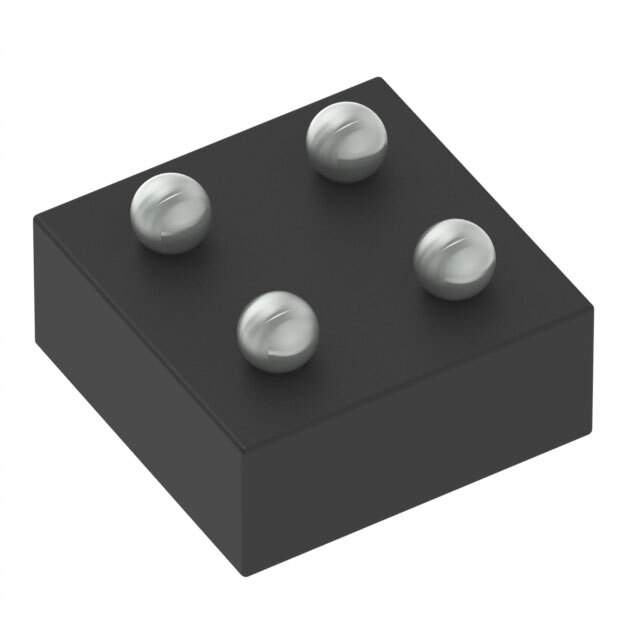

• Space-Saving Package: The device is available in a small TSSOP package (DPWR suffix), which is ideal for space-constrained applications.
• RoHS Compliant: As with many Texas Instruments products, the SN74AUP1G32DPWR is RoHS compliant, ensuring adherence to environmental standards and regulations.

Applications:

The SN74AUP1G32DPWR is versatile and can be used in a variety of applications, including:

• Smartphones, Tablets, and Wearable Technology
• Portable Medical Devices
• Energy-Harvesting Systems
• Low-Power Sensor Nodes
• Handheld Consumer Electronics

In summary, the SN74AUP1G32DPWR from Texas Instruments is an excellent choice for designers looking for a reliable, energy-efficient OR gate logic solution that does not compromise on speed or performance, even in the most power-sensitive applications.
