SN74AUP1G32DRLR - Low-Power Single 2-Input Positive-OR Gate

The SN74AUP1G32DRLR is a highly efficient, single 2-input positive-OR gate integrated circuit from Texas Instruments, designed for optimal performance in low-power and portable electronic applications. This advanced logic gate is part of the AUP (Advanced Ultra-low Power) family, which is renowned for its low power consumption and high-speed operation, making it an ideal choice for extending battery life in modern electronic devices.

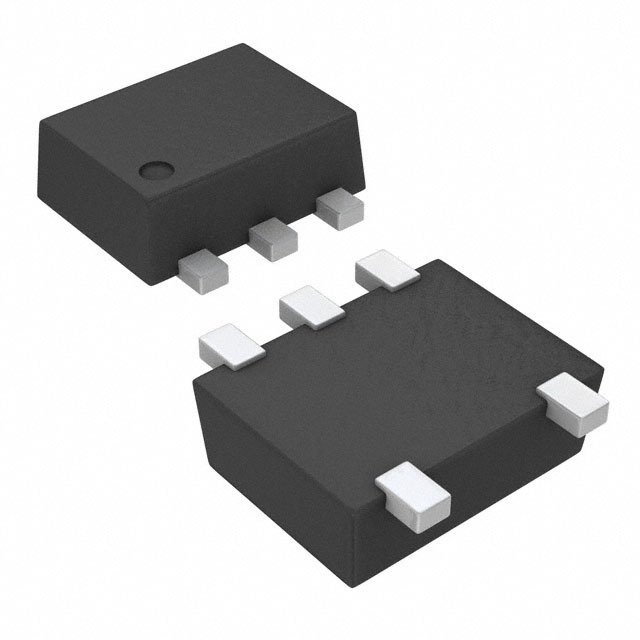

Encased in a compact SOT-5X3 package, the SN74AUP1G32DRLR boasts a wide operating voltage range of 0.8V to 3.6V. This broad voltage range ensures compatibility with a variety of logic levels, allowing for seamless integration into multiple system designs without the need for level shifting. The device is characterized for operation from -40°C to +85°C, providing reliable performance across a wide temperature spectrum, which is critical for applications that may be exposed to varying environmental conditions.

One of the key features of the SN74AUP1G32DRLR is its ultra-low static power consumption, with a typical I<sub>CC of only 0.9 µA at 3.3 V. This is particularly advantageous for battery-operated devices where power efficiency is paramount. Additionally, the device offers a low dynamic power consumption with a typical C<sub>PD value of 4.2 pF at 3.3 V, further contributing to its energy-saving profile.

The SN74AUP1G32DRLR provides high drive capability while maintaining fast switching speeds. With a propagation delay of typically 3.7 ns at 3.3 V, this OR gate facilitates swift logic operations, which is essential for high-speed signal processing and computing tasks. Moreover, the device is also equipped with I<sub>off support, which prevents damaging current backflow through the device when it is powered down, thus protecting the integrity of the component and the overall circuit.

Designed with the needs of modern electronics in mind, the SN74AUP1G32DRLR from Texas Instruments is a robust and versatile component that delivers reliable logic functions with minimal power consumption. It is an excellent choice for designers looking to optimize power efficiency without sacrificing performance in applications such as smartphones, wearable technology, and other portable devices.
