The SN74CBTLV16800GR from Texas Instruments is a high-performance, 18-bit FET bus switch designed with a low-voltage operation that makes it ideal for modern applications requiring efficient power consumption and high-speed data transfer. This component is part of the CBTLV (Low-Voltage) series, which is known for its ability to facilitate the switching of signals with minimal propagation delay.

Key Features

• Low-Voltage Operation: The device is optimized for 3.3V operation, ensuring compatibility with contemporary low-voltage systems.
• 5-Ω Switch Connection: The switch connection between two ports ensures minimal signal distortion, providing a near-ideal bus-switching solution.
• Low Power Consumption: With its low power dissipation, the SN74CBTLV16800GR is suitable for power-sensitive designs.
• High Bandwidth: The device offers a bandwidth that supports high-speed data transfer, which is essential for modern high-performance computing and communication applications.
• Quick Switching: The bus switch features fast turn-on and turn-off times, allowing for efficient data flow with minimal delay.
• Bidirectional Data Flow: The switch supports bidirectional data flow, making it versatile for various signal routing applications.

Applications

The SN74CBTLV16800GR is suitable for a wide range of applications, including:

• Bus isolation and switching in servers and routers
• Signal gating, where low on-state resistance is critical
• Hot-swapping and hot-docking operations in portable electronics
• Memory interleaving in high-speed data systems
• Function switching in complex computing systems

Package and Quality

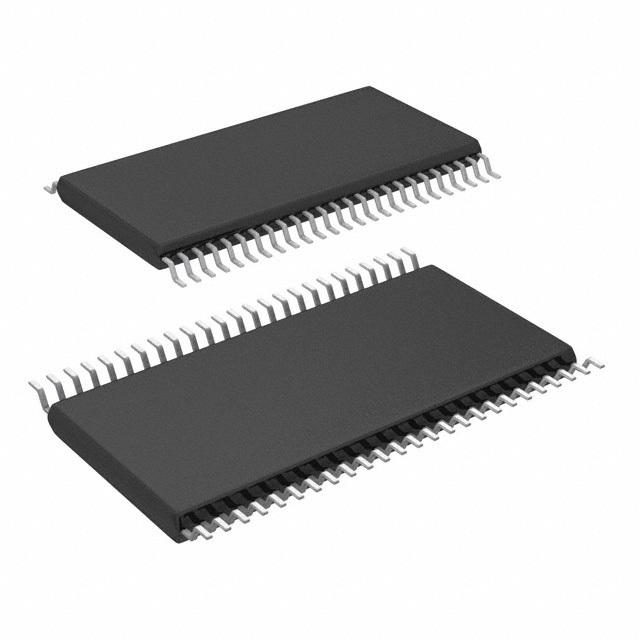

The device is offered in a 56-pin TSSOP (Thin Shrink Small Outline Package) that is designed for space-saving on printed circuit boards. The SN74CBTLV16800GR is also characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide range of environmental conditions. Texas Instruments is known for its commitment to quality, and this product is no exception, meeting stringent industry standards for performance and reliability.
