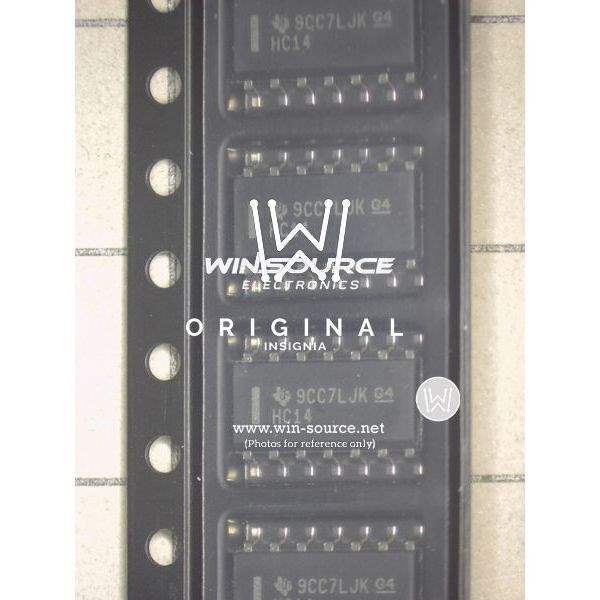

The SN74HC14DRG4 device from Texas Instruments is a high-performance, hex inverter integrated circuit with Schmitt-trigger inputs. This IC is designed for use in a wide array of applications ranging from signal conditioning and processing to creating highly stable square waves for timing and control systems.

Key Features:

• Logic Type: Inverter Schmitt Trigger
• Number of Circuits: 6
• Input Type: Schmitt Trigger
• Output Type: CMOS
• Supply Voltage Range: 2 V to 6 V
• Operating Temperature: -40°C to +85°C
• Mounting Type: Surface Mount
• Package / Case: SOIC-14
• Propagation Delay Time: 13ns at 4.5V

Performance Advantages:

The SN74HC14DRG4 is characterized for operation from -40°C to +85°C, making it suitable for industrial applications. The device functions as an inverter but with Schmitt-trigger action on all inputs. The Schmitt-trigger feature significantly enhances noise immunity and transforms slowly changing input signals into sharply defined, jitter-free output signals, which is especially useful in applications where noise is a concern.

Applications:

Due to its versatility, the SN74HC14DRG4 is ideal for an array of electronic applications, including:

• Wave shaping and noise elimination
• Signal processing
• Timing circuits
• Pulse shaping
• Logic circuits

Quality and Reliability:

Texas Instruments is known for its commitment to quality and the SN74HC14DRG4 is no exception. It is manufactured using TI’s advanced silicon-gate CMOS technology, which provides the inherent benefits of CMOS—low quiescent power and robustness for a wide range of operating conditions.

Ordering Information:

The SN74HC14DRG4 comes in a SOIC-14 package and is available for ordering in various quantities to meet project needs, from prototype to production volumes. For detailed information, including pricing and availability, please visit the Texas Instruments website or contact an authorized distributor.
