The SN74LV04ARGYR is a high-performance, six-inverter gate integrated circuit brought to you by Texas Instruments, a leader in semiconductor design and manufacturing. This device is part of the 74LV family, which is renowned for its low-voltage operation and compatibility with TTL-level logic while maintaining CMOS low power consumption.

Key Features

• Logic Type: Hex Inverter - The SN74LV04ARGYR contains six independent inverter gates that provide logic inversion with high noise immunity.
• Supply Voltage Range: 2 V to 5.5 V - This wide range allows the device to be used in various applications, from battery-powered devices to industrial equipment.
• Output Drive Capability: Can drive up to 5.5 V, making it suitable for interfacing with a variety of other logic families.
• Propagation Delay Time: Fast propagation delay ensures quick response times, which is critical for high-speed applications.
• Operating Temperature: -40°C to 85°C, which makes it robust for use in harsh environmental conditions.

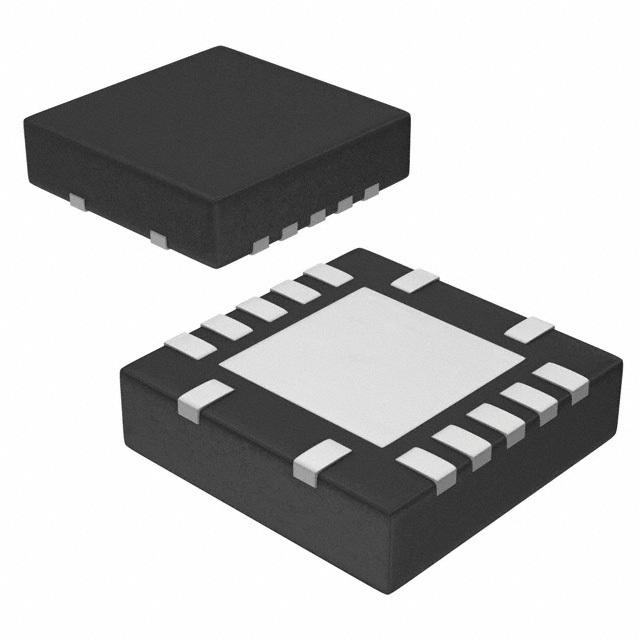

• Package: The device comes in a VQFN (RGY) package with 14 pins, providing a compact footprint for space-constrained applications.

Applications

The versatility of the SN74LV04ARGYR makes it suitable for a wide range of applications, including:

• Telecommunications
• Servers
• Personal computers
• Networking equipment
• Consumer electronics

Quality and Reliability

Texas Instruments is committed to delivering high-quality and reliable products. The SN74LV04ARGYR is no exception and has undergone rigorous testing to ensure it meets the industry standards for performance and longevity. With Texas Instruments' trusted brand behind this product, customers can expect consistent and reliable operation in their electronic systems.

Ordering Information

The SN74LV04ARGYR is available in tape and reel packaging, facilitating easy assembly during the manufacturing process. For detailed ordering and shipping information, please visit the Texas Instruments website or contact an authorized distributor.
