Product Overview: SN74LV125ATPWR by Texas Instruments

The SN74LV125ATPWR is a quadruple bus buffer gate designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This device is part of TI's SN74LV family, which is renowned for its low-voltage operation and high-performance capabilities. The SN74LV125ATPWR features four independent non-inverting buffer gates with 3-state outputs, making it an ideal choice for driving bus lines or buffer memory address registers.

Key Features

• Operating Voltage: The device operates at a wide range of supply voltages from 2V to 5.5V, which allows for use in a variety of logic systems and makes it compatible with TTL levels.
• Drive Capability: These buffer gates can drive up to 24mA at the outputs, ensuring strong signal transmission over bus lines.
• 3-State Outputs: The 3-state outputs can be put in a high-impedance state, effectively disconnecting the output from the circuit, which is a crucial feature for bus-oriented systems.
• Low Power Consumption: The device has a low power consumption, with a typical ICC of only 20µA maximum, which is ideal for power-sensitive applications.
• Schmitt-Trigger Action: Inputs feature Schmitt-trigger action, which enables the device to handle slow input transition rates with increased noise immunity.

Applications

The SN74LV125ATPWR is suitable for a wide range of applications, including:

• Bus driver or buffer for memory address registers
• Support for data transmission systems with its 3-state outputs
• Interface between different voltage domains due to its wide operating voltage range
• Control systems requiring low power consumption

Packaging and Quality

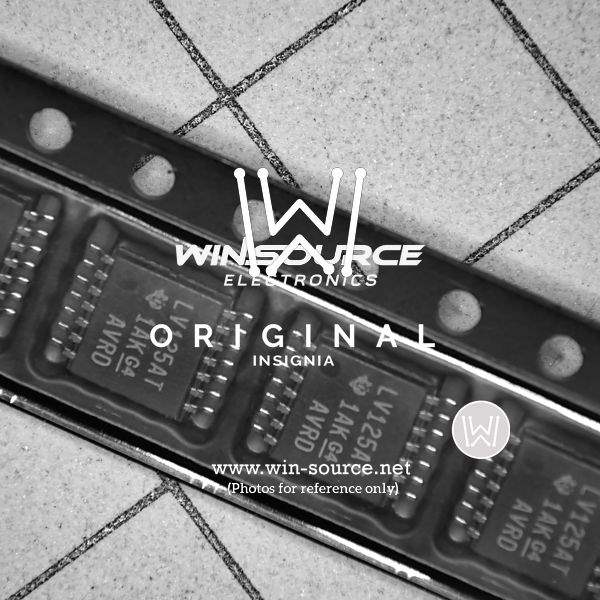

The SN74LV125ATPWR comes in a TSSOP (Thin Shrink Small Outline Package) with 14 pins, offering a compact footprint for space-constrained applications. TI ensures high standards of quality and reliability for their products, and this device is no exception, meeting or exceeding industry standards.

With its combination of features, the SN74LV125ATPWR from Texas Instruments stands out as a versatile and reliable component for designers looking to enhance their digital systems.
