Product Overview: SN74LVC16646ADGG

The SN74LVC16646ADGG is a high-performance, 16-bit bus transceiver and register from Texas Instruments, designed for use in applications requiring bidirectional data flow and storage. This integrated circuit (IC) is part of the LVC family, which stands for Low-Voltage CMOS, signifying its operation at a lower voltage with reduced power consumption without compromising on speed.

Featuring two 8-bit bus transceivers with 3-state outputs, the SN74LVC16646ADGG can be used in either direction to move data from the bus to the output ports or vice versa. The device operates on a 3.3V supply voltage, making it compatible with modern low-voltage systems, yet it retains the ability to interface with 5V logic levels, ensuring flexibility in mixed-voltage environments.

One of the key attributes of this product is its dual-edge-triggered D-type flip-flops, which allow for synchronous data transfer. The flip-flops are controlled by separate clock and output-enable (OE) inputs for each byte, providing precise control over data transfer and output. The IC also features a clear (CLR) input that can reset the internal registers, setting all outputs to a low level.

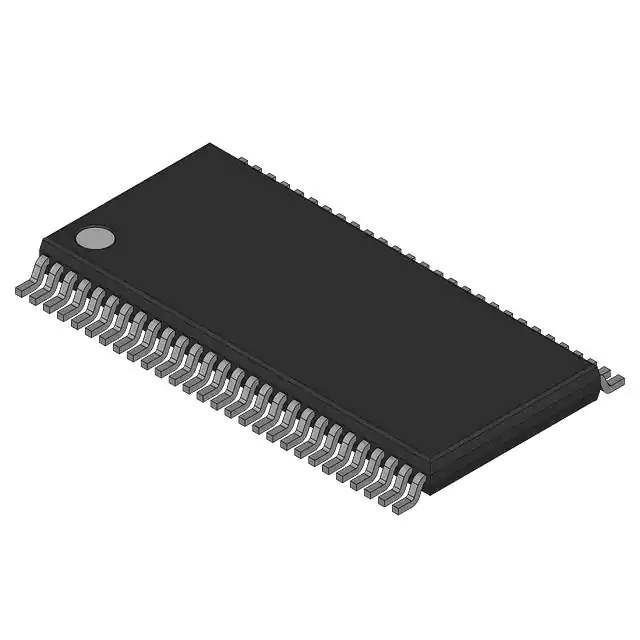

The SN74LVC16646ADGG is housed in a 56-pin TSSOP (Thin Shrink Small Outline Package) that offers a compact footprint while ensuring thermal efficiency and reliable electrical performance. This package is suitable for surface-mount technology (SMT), allowing for high-density mounting on printed circuit boards (PCBs).

Key applications for the SN74LVC16646ADGG include data communication, address and data multiplexing, and system extension or integration. Its low-power consumption and high-speed operation make it an excellent choice for battery-powered devices, portable electronics, and high-speed data-processing systems.

Overall, the SN74LVC16646ADGG from Texas Instruments is a versatile and efficient solution for designers looking to implement high-speed data transfer and storage in their digital systems while maintaining low power usage and compatibility with various logic levels.
