The SN74LVC1G97DCKRE4 from Texas Instruments is a versatile and high-performance configurable multiple-function gate that is a part of the 74LVC family. This device is designed to operate from 1.65 V to 5.5 V, making it suitable for a wide range of applications including those that interface with 5V systems. This feature ensures that the SN74LVC1G97DCKRE4 is compatible with mixed-voltage environments and can be used in various logic-level translations.

Key Features

• Configurable Multiple Logic Functions: The device can be configured as one of seven different standard logic gates (AND, OR, XOR, NAND, NOR, XNOR, or NOT), providing a high level of flexibility in logic design.
• Low Power Consumption: With its low power consumption, it is ideal for battery-powered and low-power applications.
• Wide Operating Voltage Range: The broad voltage range of 1.65 V to 5.5 V allows for interfacing with a variety of logic levels, ensuring compatibility with both newer low-voltage systems and legacy 5V systems.
• High Drive Capability: The SN74LVC1G97DCKRE4 can drive up to +/-24 mA at the output, allowing for direct driving of small loads.
• Schmitt-Trigger Inputs: The inputs include Schmitt triggers that provide hysteresis, which is beneficial for transforming slowly changing input signals into sharply defined jitter-free output signals.

Applications

The device's flexibility in voltage and configuration makes it suitable for a range of applications, including:

• Signal gating
• Logic level translation
• Function generation
• Complex logic circuit implementation

Package and Quality

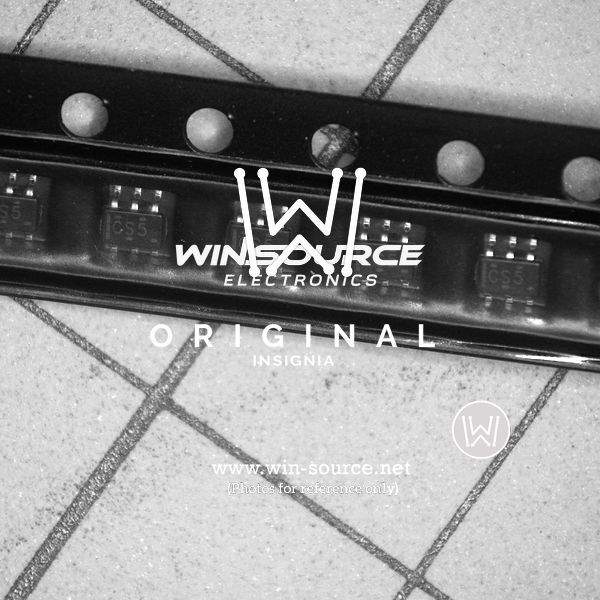

The SN74LVC1G97DCKRE4 comes in a space-saving 6-pin SC70 package, which is ideal for compact PCB layouts. Texas Instruments ensures high reliability and performance by subjecting their products to rigorous testing and quality control procedures.

Environmental and Regulatory Compliance

The device is RoHS compliant and is free from lead (Pb), ensuring that it meets environmental standards and can be used in products sold worldwide.

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments official website or consult the SN74LVC1G97DCKRE4 datasheet.
