The SN74LVC2G34DCK3 is a high-performance, dual unbuffered inverter gate designed and manufactured by Texas Instruments. This component is part of the LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage systems. The SN74LVC2G34DCK3 operates on a supply voltage range of 1.65 V to 5.5 V, making it suitable for interfacing with both 3.3 V and 5 V logic levels, thus providing design flexibility across various applications.

This device is optimized for low power consumption while maintaining high speed, with a typical propagation delay of only 2.9 ns at a 5 V supply voltage. The low dynamic power consumption and low quiescent current are significant advantages for battery-powered and power-sensitive applications. Additionally, the SN74LVC2G34DCK3 has 5-V tolerant inputs, which allow the use of this device in mixed-voltage mode without the risk of damage to the device.

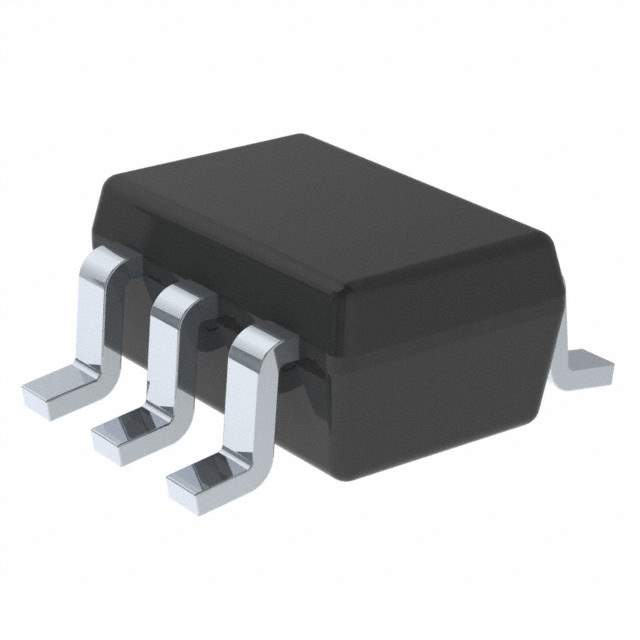

The SN74LVC2G34DCK3 comes in a compact SC70 6-pin package, which is ideal for space-constrained applications. The small form factor does not compromise its performance or reliability, making it a preferred choice for high-density designs. The device's inputs are designed to be robust and can tolerate up to ±30 mA of continuous current, thereby enhancing the durability of the component in harsh electrical environments.

Texas Instruments has engineered the SN74LVC2G34DCK3 with an operational temperature range of -40°C to +85°C, ensuring reliable performance across diverse environmental conditions. This feature is particularly important for industrial and automotive applications, where temperature extremes are common.

In summary, the SN74LVC2G34DCK3 is a versatile, high-performance component suitable for a wide range of digital logic applications. Its low-power consumption, high-speed operation, and compatibility with multiple voltage levels make it an excellent choice for designers looking to create efficient, reliable, and compact electronic systems.
