SN74LVTH16952DLR by Texas Instruments

The SN74LVTH16952DLR is a high-performance, low-voltage 16-bit registered transceiver with 3-state outputs. Designed and manufactured by Texas Instruments, this integrated circuit is part of the LVTH (Low-Voltage BiCMOS Technology with TTL-Compatible Inputs) family, which ensures compatibility with 5V systems while operating at a lower voltage range. The SN74LVTH16952DLR is ideal for use in applications that require high-speed data transfer and interfacing between different voltage domains.

This device features two separate 8-bit bus transceivers with 3-state outputs, which can be used independently or as a single 16-bit transceiver. It is designed to be used with a 3.3V power supply, which helps to reduce power consumption without sacrificing performance. The SN74LVTH16952DLR also supports mixed-mode signal operation, allowing it to interface with 5V signals on the input side while operating at a lower voltage level.

Key features of the SN74LVTH16952DLR include:

• Wide Bus Compatibility: It can be used with 16-bit buses, providing high-speed bidirectional data flow between A and B buses.
• Controlled Output Timing: The device includes clear (CLR) and preset (PRE) functions, which enable synchronous control of the output stages.
• Edge-Rate Control Circuitry: Minimizes output signal overshoot and undershoot, ensuring better signal integrity.
• Bus-Hold Data Inputs: These inputs eliminate the need for external pull-up/pull-down resistors, simplifying board design.
• Flow-Through Architecture: Optimizes PCB layout with easier trace routing.
• Low Power Consumption: The device operates at a low voltage level, reducing overall power usage.

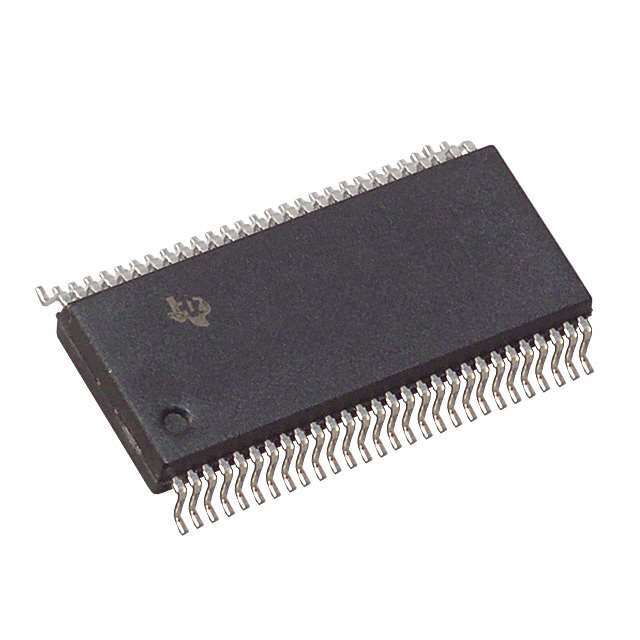

The SN74LVTH16952DLR is packaged in a 48-pin SSOP (Shrink Small-Outline Package), providing a compact footprint for space-constrained applications. It is commonly used in telecommunications, computing, networking, and industrial markets where reliable high-speed data transfer is crucial.

Texas Instruments' commitment to quality ensures that the SN74LVTH16952DLR meets stringent standards for performance and reliability, making it a trusted choice for designers and engineers seeking a robust transceiver solution.
