The TAS5706APAPR is a sophisticated audio power amplifier from Texas Instruments designed to cater to the high-quality audio needs of consumer electronics. This integrated circuit is part of TI's PurePath™ HD technology line, which is renowned for delivering high-definition audio in a compact and power-efficient package.

Key Features

• Output Power: The TAS5706APAPR can deliver up to 20 Watts of continuous output power per channel into an 8-ohm load, with less than 1% THD+N, ensuring a powerful audio performance.
• Audio Channels: It is a 4-channel amplifier, which allows it to drive stereo speakers in a bi-amplified configuration or to power a 2.1 or 4.0 channel setup.
• Efficiency: As a class-D amplifier, it offers greater power efficiency compared to traditional amplifiers, making it ideal for applications where power conservation is crucial.
• Integrated Audio Processing: The device includes an array of audio processing features, such as bass management, equalization, and dynamic range control, which can be configured via an I2C interface.
• Audio Formats: It supports multiple audio formats and is capable of handling a wide range of sampling rates, ensuring compatibility with various audio sources.

Applications

The TAS5706APAPR is versatile and can be used in several types of audio equipment, including:

• Home theater systems
• Soundbars
• Desktop audio systems
• Active speakers
• TVs with integrated audio systems

Technical Specifications

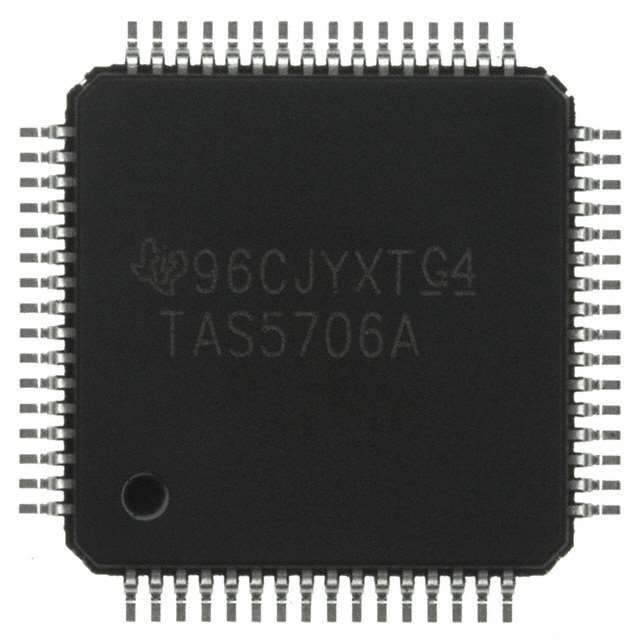

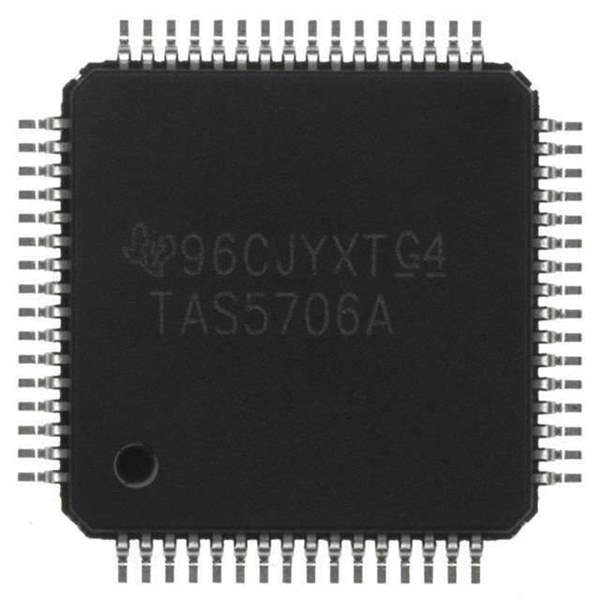

With a wide supply voltage range from 8V to 26V, the TAS5706APAPR is designed to be flexible in various power environments. Its thermal and overcurrent protection features ensure reliable operation under different conditions. Additionally, the device comes in a 64-pin HTQFP package, which is suitable for space-constrained applications.

Conclusion

The Texas Instruments TAS5706APAPR stands out as a high-performance audio solution that combines power efficiency with advanced audio processing capabilities. Its extensive feature set makes it an excellent choice for manufacturers looking to enhance the audio experience in their products.
