Product Overview: TCA9548APWR by Texas Instruments

The TCA9548APWR is a sophisticated integrated circuit developed by Texas Instruments, designed to enhance the functionality and performance of I²C bus communication in complex electronic systems. This device is an 8-channel I²C switch that allows a single master device to communicate with up to eight separate I²C slave devices. It is particularly useful in scenarios where multiple I²C devices with identical addresses need to be connected to the same bus.

Featuring a wide operating voltage range from 2.3V to 5.5V, the TCA9548APWR is versatile and can be integrated into various systems operating at different voltage levels. This makes it suitable for a broad range of applications, from consumer electronics to industrial control systems.

Key Features:

• Multi-Channel I²C Switching: The device offers 8 bidirectional translating switches that can connect eight separate slave devices to a single master.
• Channel Selection: Channels can be selected via the I²C bus, allowing for dynamic configuration and control.
• Low Standby Current: Power conservation is a key aspect of the TCA9548APWR, with a low standby current that minimizes power consumption when the device is not actively switching.
• Interrupt Function: Each channel has an interrupt input that can be passed back to the system master, ensuring prompt response to any event on the I²C bus.
• Software Reset: A software reset feature allows the device to be reset through the I²C bus, simplifying system management and recovery.

Applications:

The TCA9548APWR is ideal for a variety of applications where multiple I²C devices are used, including:

• Server and telecom infrastructure
• Industrial controls
• Medical equipment
• Consumer electronics
• Computing peripherals

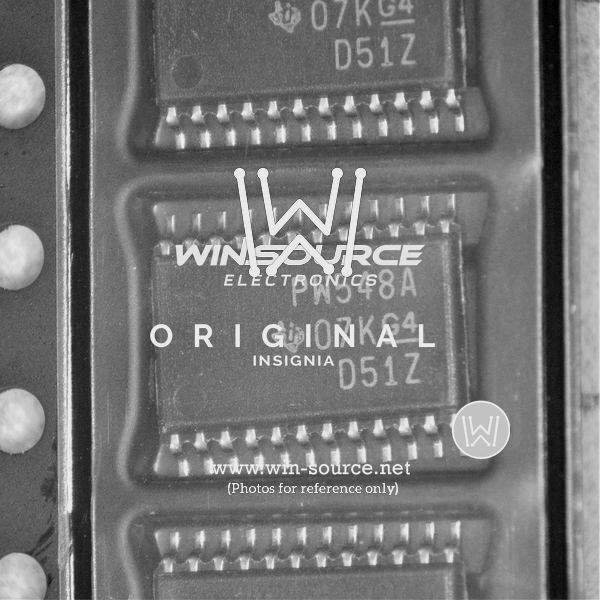

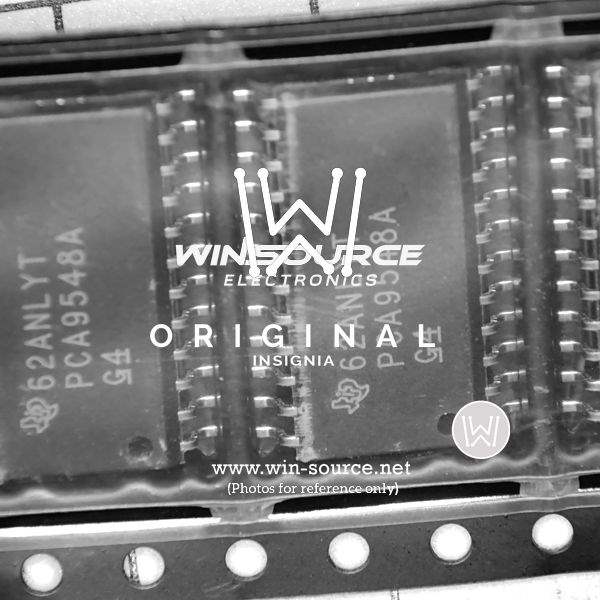

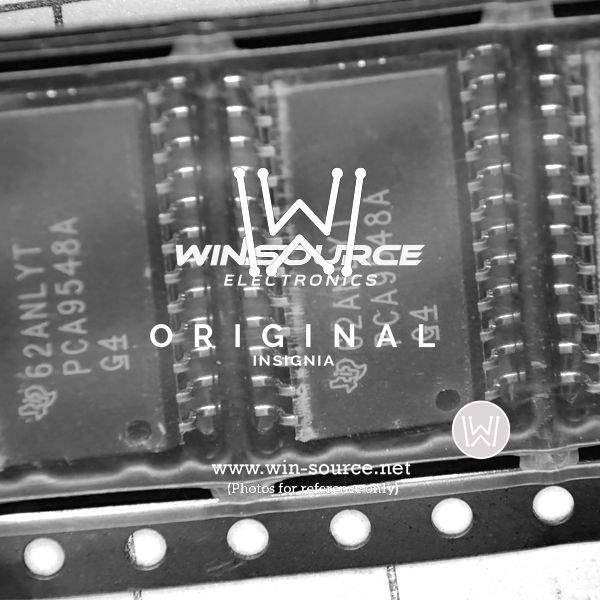

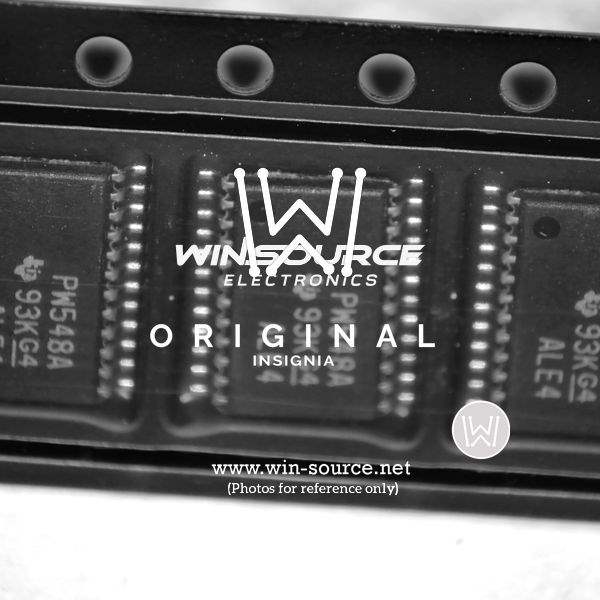

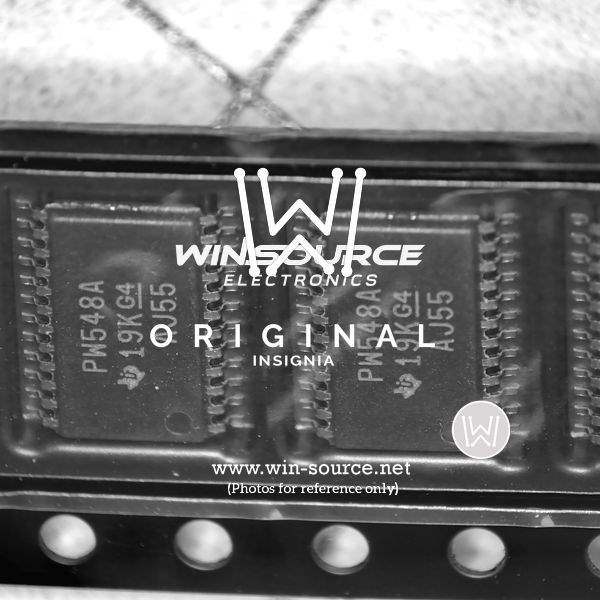

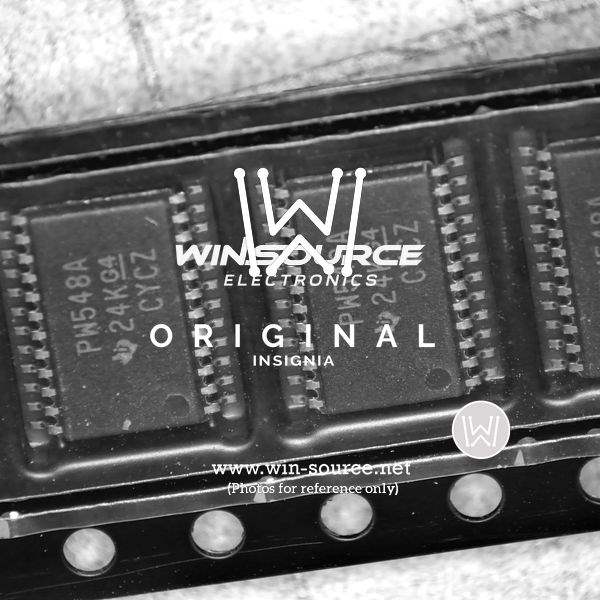

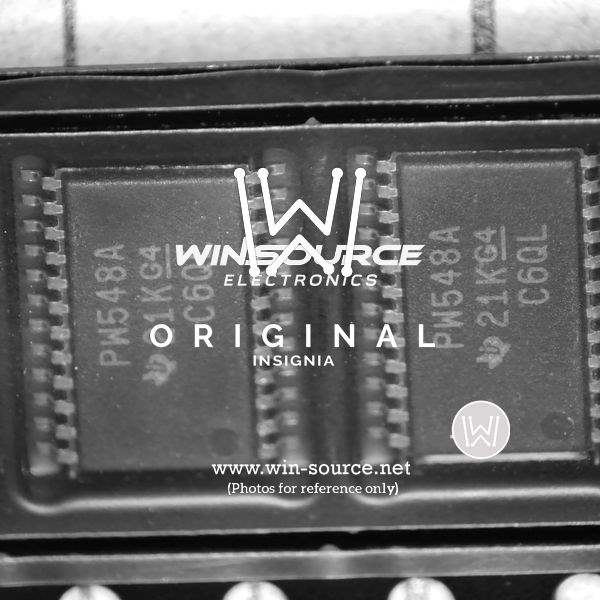

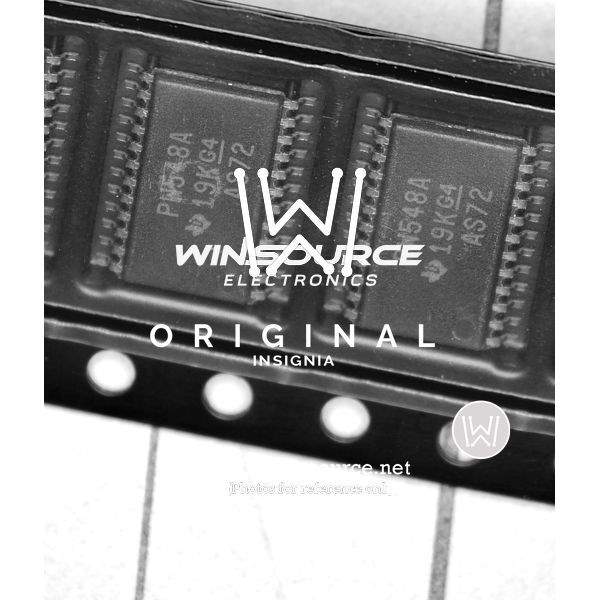

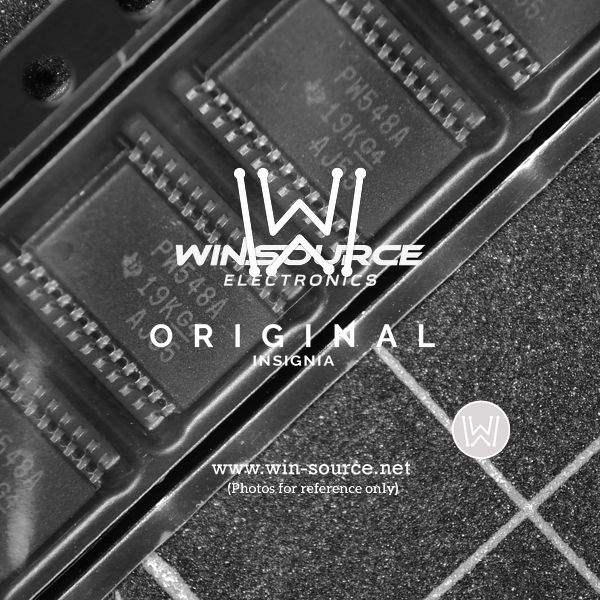

This device is available in a TSSOP (Thin Shrink Small Outline Package) with 24 pins, ensuring a compact footprint for space-constrained applications. The TCA9548APWR from Texas Instruments represents a reliable and efficient solution for expanding I²C bus capabilities, improving system integration, and facilitating communication between multiple I²C devices.
