The TCAN334DR is a high-performance CAN (Controller Area Network) transceiver from the reputable electronics manufacturer, Texas Instruments. Designed to operate as an interface between a CAN protocol controller and the physical two-wire CAN bus, the TCAN334DR is an integral component in automotive and industrial applications where reliable data communication is critical.

Key Features

• Robust Interface: With its ability to handle high-voltage bus systems and its protection against transients, the TCAN334DR ensures a reliable and robust interface for CAN communication networks.
• High Speed: It supports data rates up to 1 Mbps, making it suitable for high-speed CAN applications.
• Low Power Consumption: The device features a low-current standby mode, which is beneficial for power-sensitive applications.
• Protection Features: It includes protection against bus fault conditions, ensuring the device's longevity and reliability.
• Wide Operating Temperature Range: The transceiver operates effectively across a broad temperature range, making it suitable for harsh environments.

Applications

The TCAN334DR is designed for use in various applications that require robust data communication, such as:

• Automotive Networks
• Industrial Automation Systems
• Building Automation
• Medical Equipment

Technical Specifications

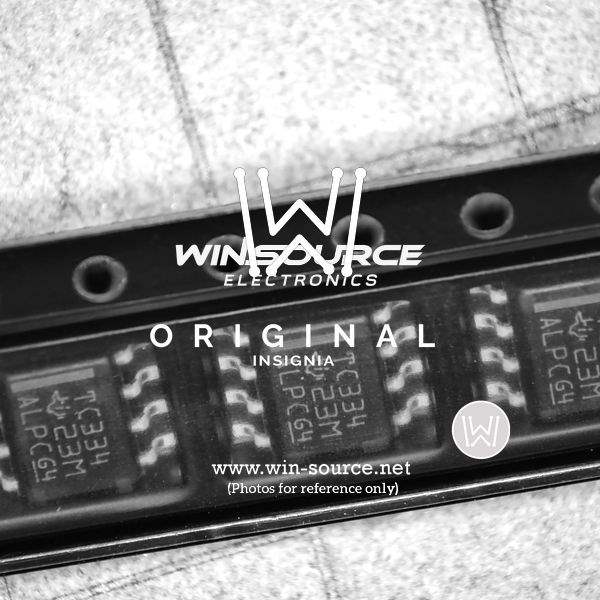

The TCAN334DR is available in an 8-pin SOIC package and is characterized for operation from -40°C to +125°C. It complies with the ISO 11898-2 High Speed CAN (HSC) standard, which is critical for interoperability with other CAN devices.

Ordering Information

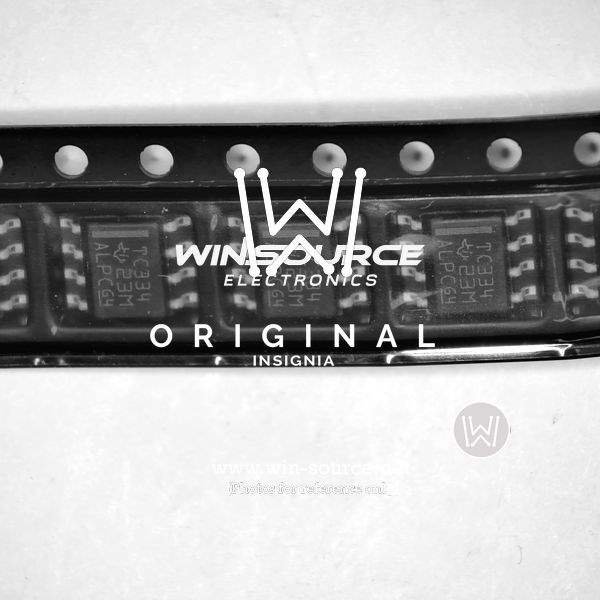

For those looking to integrate the TCAN334DR into their systems, this transceiver is sold under the Texas Instruments part number TCAN334DR. It is available in tape and reel packaging, facilitating easy assembly during the manufacturing process.
