The THVD1451DRBT is a robust, versatile, and high-performance RS-485 transceiver from Texas Instruments, designed to meet the demanding requirements of industrial communication systems. This transceiver is part of the THVD1451 family, which is known for its exceptional signal integrity and noise immunity in harsh environments.

Key Features

• Bus-Pin ESD Protection: The device offers an Electrostatic Discharge (ESD) protection of ±16 kV Human Body Model (HBM) on the bus pins, ensuring durability and reliability in challenging conditions.
• High Data Rates: Capable of operating at data rates up to 50 Mbps, the THVD1451DRBT is suitable for high-speed data communication, making it ideal for modern industrial networks.
• Extended Common-Mode Range: The device supports an extended common-mode range of -35 V to +35 V, which exceeds the industry standard of ±25 V, providing additional tolerance to ground potential differences.
• Thermal Shutdown Protection: Integrated thermal shutdown protection prevents damage from overheating, thereby enhancing the transceiver's operational longevity.
• Low Power Consumption: With a low standby current of 1 µA, the THVD1451DRBT is energy-efficient, making it suitable for power-sensitive applications.

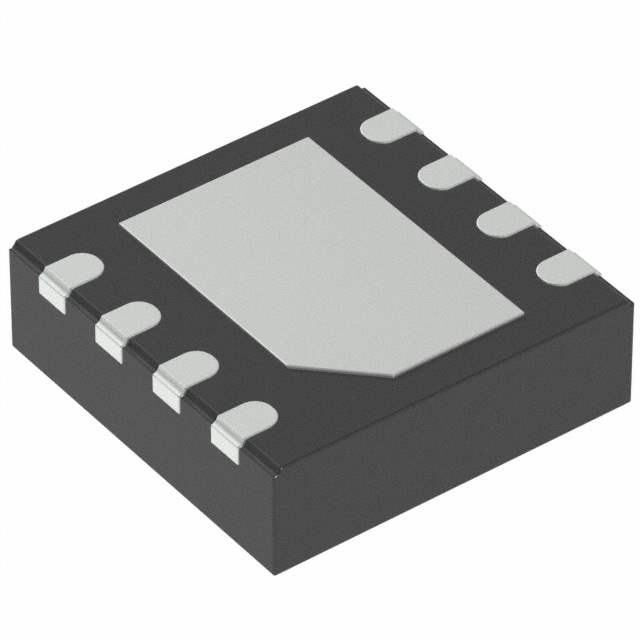

• Robust Packaging: The device comes in a small 8-pin SOIC package, optimizing board space without compromising on performance.

Applications

The THVD1451DRBT is well-suited for a wide range of applications in the industrial sector, including but not limited to:

• Industrial control systems
• Building automation
• Factory automation
• Process control networks
• Motor drives and inverters

Product Specifications

Parameter Value Part Number THVD1451DRBT Operating Temperature Range -40°C to +125°C Package Type SOIC Number of Pins 8 Supply Voltage 3.3 V to 5 V

For more detailed information and technical specifications, please refer to the official Texas Instruments datasheet for the THVD1451DRBT transceiver.
