Product Overview: TLIN1021ADRQ1 from Texas Instruments

The TLIN1021ADRQ1 is a robust, automotive-grade, single-channel LIN transceiver from Texas Instruments designed to meet the stringent requirements of in-vehicle networking applications. This transceiver is compliant with the LIN 2.0, 2.1, 2.2, 2.2A, and SAE J2602 standards, ensuring broad compatibility with LIN systems worldwide. Its primary use is in local interconnect network (LIN) bus communication systems in automobiles, offering a reliable interface between the LIN master/slave protocol controller and the physical bus.

Key Features

• High Integration: Integrates a LIN transceiver with a wake-up and protection features, simplifying design and reducing external component count.
• Low Power Consumption: Features a low-current sleep mode with remote wake-up capability, making it suitable for battery-operated applications.
• Robust Protection: Offers excellent ESD performance, with built-in protection against loss of ground and short-circuit conditions in both powered and unpowered states.
• Thermal Shutdown: Incorporates a thermal shutdown feature to protect against excessive power dissipation and overheating.

Applications

The TLIN1021ADRQ1 is ideal for a wide range of automotive applications, including but not limited to:

• Body control modules
• Rain/light sensors
• Seat control modules
• Window lift and mirror adjustment systems

Quality and Reliability

As an AEC-Q100 qualified device, the TLIN1021ADRQ1 is designed to meet the rigorous quality standards required in the automotive industry. It is manufactured in ISO/TS16949 certified facilities, ensuring high reliability and performance even under the harsh conditions typical of automotive environments.

Package and Availability

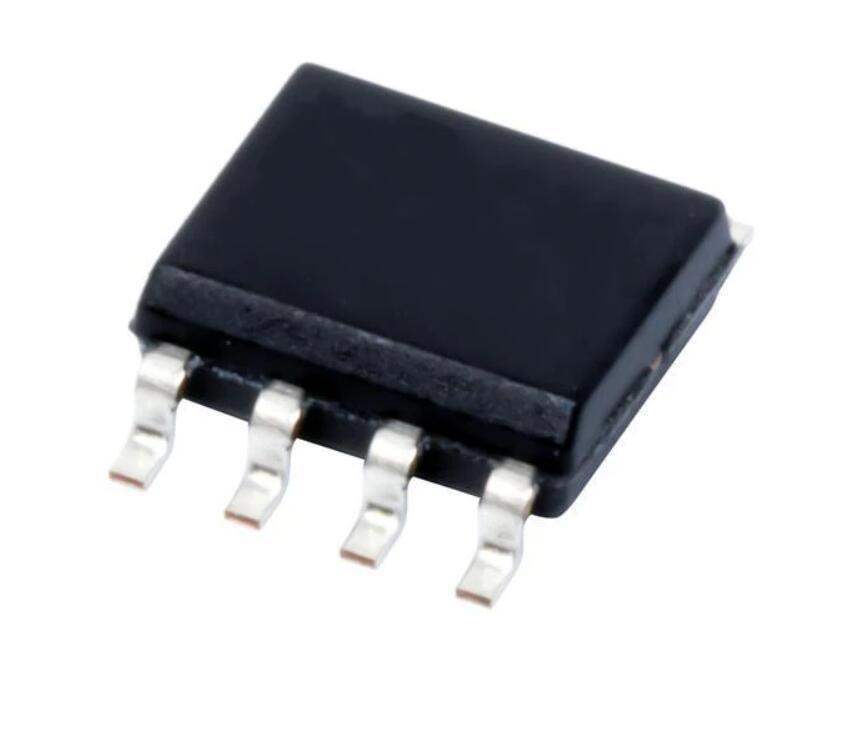

The device is available in an 8-pin SOIC package, which is compact and suitable for space-constrained applications. The TLIN1021ADRQ1's operational temperature range of -40°C to +125°C allows for use in a wide variety of climates and in-cabin conditions.

With its combination of features, protection, and compliance with industry standards, the TLIN1021ADRQ1 from Texas Instruments represents a dependable choice for automotive developers looking to implement LIN communications in their next vehicle design.
