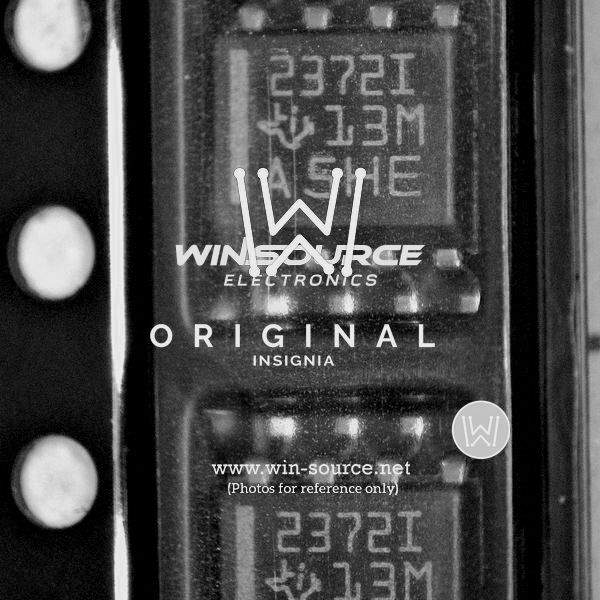

TLV2372IDR - Texas Instruments Operational Amplifier

The TLV2372IDR from Texas Instruments is a high-performance, rail-to-rail input and output operational amplifier that is part of the TLV237x family. This dual operational amplifier (op-amp) is designed to operate with a single or dual power supply, making it a versatile choice for a wide range of applications.

Key Features

• Supply Voltage Range: The TLV2372IDR can operate from a supply voltage range of 2.7V to 16V, accommodating various application needs whether it is for low-voltage or standard operations.
• Output Swing: Its rail-to-rail output swing provides increased dynamic range, which is especially beneficial in single-supply operations.
• Input Offset Voltage: The device features a low input offset voltage, which minimizes errors in signal processing applications.
• Bandwidth and Slew Rate: It boasts a bandwidth of 2.3MHz and a slew rate of 3.6V/µs, allowing for fast and accurate signal amplification.
• Low Quiescent Current: With a low quiescent current of just 550µA per channel, the TLV2372IDR is suitable for battery-powered devices, emphasizing power efficiency.
• Package: The device is available in an 8-pin SOIC package, which is compact and ideal for space-constrained applications.

Applications

The TLV2372IDR is well-suited for a variety of applications, including:

• Audio processing
• Sensor amplification
• Active filters
• Test and measurement equipment
• Battery-powered devices
• Analog signal conditioning

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the TLV2372IDR is no exception. It is designed to meet the stringent requirements of industrial and commercial applications. With its robust design and advanced manufacturing processes, the TLV2372IDR is a reliable choice for designers looking to enhance system performance while maintaining power efficiency.
