TLV320ADC6120IRTER: An Advanced Audio ADC from Texas Instruments

The TLV320ADC6120IRTER is a state-of-the-art audio analog-to-digital converter (ADC) developed by Texas Instruments. This high-performance device is designed to provide superior audio quality in a variety of applications, ranging from professional audio recording to industrial and automotive systems.

Key Features

• High-Resolution Audio: With support for up to 32-bit resolution and sample rates up to 768 kHz, the TLV320ADC6120IRTER captures audio with incredible detail and clarity.
• Multi-Channel Support: This ADC can handle up to four analog input channels, making it an ideal choice for systems that require multiple audio inputs to be digitized simultaneously.
• Low-Noise Performance: It boasts an impressive signal-to-noise ratio (SNR) and low total harmonic distortion plus noise (THD+N), ensuring clean and accurate audio reproduction.
• Flexible Interface Options: The device offers a variety of digital audio interface formats, including I2S, LJ, RJ, and TDM, for easy integration with digital signal processors (DSPs) and microcontrollers.
• Programmable Microphone Bias: The TLV320ADC6120IRTER provides a programmable microphone bias voltage, accommodating a wide range of microphone types and configurations.

Applications

The versatility of the TLV320ADC6120IRTER makes it suitable for a broad array of applications, such as:

• Professional audio recording equipment
• Audio interfaces and mixing consoles
• Voice-activated systems
• Automotive audio systems
• Industrial monitoring equipment

Technical Specifications

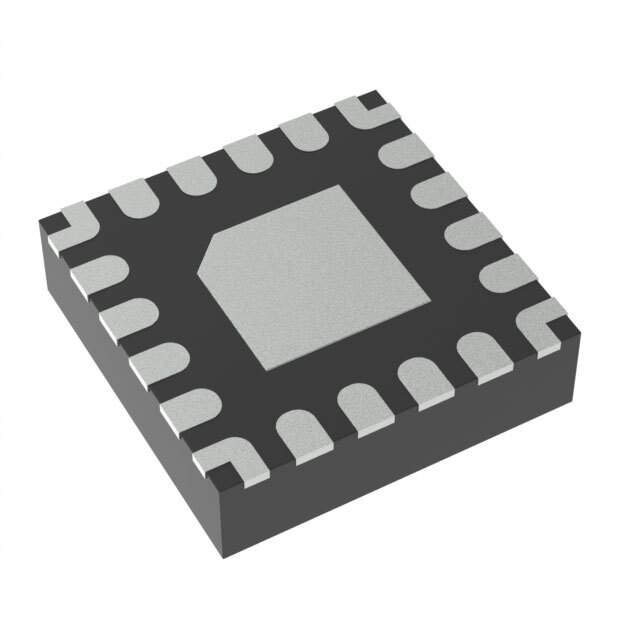

The TLV320ADC6120IRTER is available in a compact QFN package and is designed for easy PCB layout. Its technical specifications include a wide analog input range, programmable gain amplifiers, and built-in anti-aliasing filters. The device operates over a broad temperature range, making it suitable for use in challenging environments.

For detailed technical information, datasheets, and support resources, visit the Texas Instruments website or contact their support team. Whether you're designing a high-end audio system or looking for a reliable ADC for industrial applications, the TLV320ADC6120IRTER offers the performance and features you need to capture pristine audio signals.
