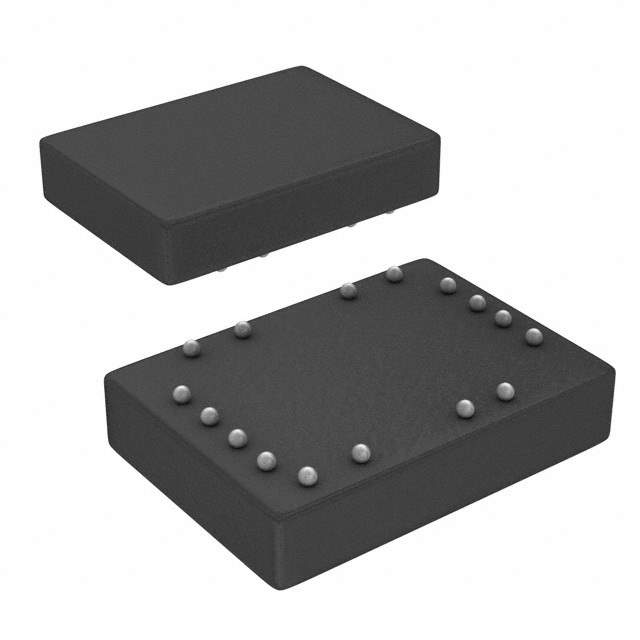

The TLV5614IYZT is a high-performance, precision digital-to-analog converter (DAC) from Texas Instruments, designed for use in industrial, communication, and consumer applications where space constraints and low power operation are critical. This 12-bit DAC features a flexible 4-wire serial interface that supports high-speed SPI, QSPI™, MICROWIRE™, and DSP interfaces, making it a versatile choice for a wide range of systems.

Key Features:

• Resolution: 12-bit resolution ensures fine-grain output for precise applications.
• Output: The device provides a dual buffered voltage output, which can be programmed to either a unipolar or bipolar format, offering flexibility for various signal requirements.
• Update Rate: It boasts a fast settling time and a maximum update rate of 1.2 MSPS, enabling responsive and real-time signal processing.
• Interface: The 4-wire serial interface is compatible with multiple standard protocols, facilitating easy integration into existing designs.
• Power Efficiency: With a low power consumption of just 1.3 mW at 5V, the TLV5614IYZT is an energy-efficient solution for battery-powered devices.
• Temperature Range: The device operates over an extended industrial temperature range of -40°C to +85°C, ensuring reliable performance under harsh conditions.
• Packaging: It is available in a compact 14-lead TSSOP (Thin Shrink Small Outline Package), optimizing board space without compromising on functionality.

Applications:

The TLV5614IYZT is well-suited for applications that demand high accuracy, fast data throughput, and minimal power draw. It is commonly used in:

• Portable instrumentation
• Process control and automation
• Data acquisition systems
• Analog output cards
• Telecommunications

With its robust feature set and Texas Instruments' reputation for quality, the TLV5614IYZT is an excellent choice for designers looking to enhance the performance and efficiency of their digital-to-analog conversion processes.
