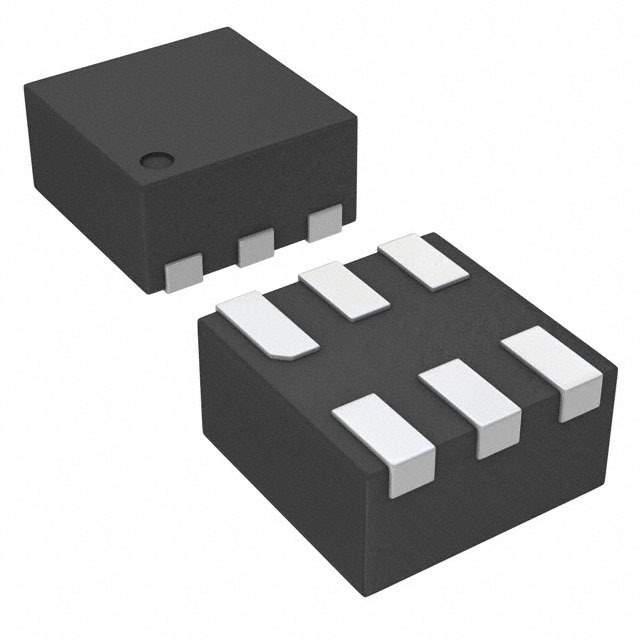

TLV70229DSET

Part No TLV70229DSET
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 2.9V 300MA 6WSON  /  Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-WSON (1.5x1.5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Texas Instruments
Package Tape & Reel
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 2.9V
Voltage Dropout (Max) 0.38V @ 300mA
Current - Output 300mA
Current - Quiescent (Iq) 55 µA
Current - Supply (Max) 370 µA
PSRR 68dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 6-WFDFN
Supplier Device Package 6-WSON (1.5x1.5)
Base Product Number TLV70229
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 296-28337-1,-TLV70229DSET-NDR,2156-TLV70229DSET,-296-28337-1-ND,296-28337-6,296-28337-2,TEXTISTLV70229DSET
Standard Package 250
Win Source Part Number 1100188-TLV70229DSET
Ultra Librarian 3D Model Ultra Librarian TLV70229DSET CAD Model

Description

Introducing the TLV70229DSET from Texas Instruments

The TLV70229DSET is a high-performance, low-dropout (LDO) voltage regulator designed to deliver a stable and reliable power supply. Manufactured by Texas Instruments, a leader in semiconductor solutions, this LDO regulator is specifically tailored to meet the needs of battery-powered and low-power applications where power efficiency is critical. With a fixed output voltage of 2.9V, it is an ideal choice for powering sensitive analog and digital circuits.

Key Features

  • High Accuracy: The TLV70229DSET provides excellent regulation over variations in line, load, and temperature, ensuring a consistent output voltage for your sensitive electronics.
  • Low Dropout: The device features a very low dropout voltage, which allows it to maintain output regulation with a minimal difference between the input and output voltages, making it highly efficient in battery-operated devices.
  • Power-Saving Modes: It includes a Power Save mode that reduces quiescent current during light load conditions, thus extending battery life in portable applications.
  • Stable with Low ESR Capacitors: The TLV70229DSET is stable with ceramic capacitors that have a low equivalent series resistance (ESR), which helps in reducing the size and cost of the capacitors needed for the application.
  • Thermal Protection: The device incorporates thermal shutdown protection to prevent damage from overheating, ensuring long-term reliability.
  • Current Limit Protection: It also includes current limit protection to safeguard the device and the load from excessive current conditions.

Applications

The TLV70229DSET is highly versatile and can be used in a variety of applications, including:

  • Portable and battery-powered devices
  • Wireless communication systems
  • Power management for PDAs and smartphones
  • Healthcare and medical equipment
  • Portable media players
  • GPS devices

With its compact size and SOT-23 package, the TLV70229DSET is easy to integrate into space-constrained designs, providing a reliable power solution without compromising on performance. Whether you're developing the latest wearable technology or designing a sophisticated medical device, the TLV70229DSET from Texas Instruments is the go-to LDO regulator for stable and efficient power management.
