TLV70509YFPR

Part No TLV70509YFPR
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 0.9V 200MA 4DSBGA / Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 4-DSBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Texas Instruments
Package Tape & Reel
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 0.9V
Voltage Dropout (Max) 0.25V @ 200mA
Current - Output 200mA
Current - Quiescent (Iq) 55 µA
Current - Supply (Max) 315 µA
PSRR 80dB ~ 55dB (10kHz ~ 1MHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)

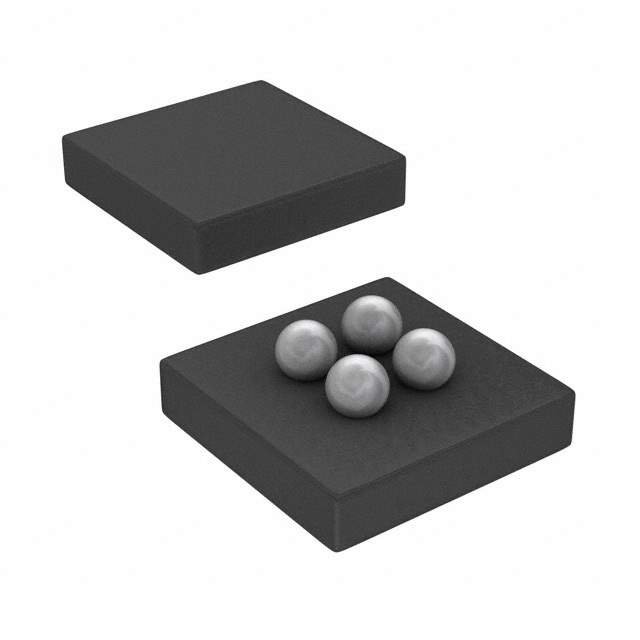

Package / Case 4-UFBGA, DSBGA
Supplier Device Package 4-DSBGA
Base Product Number TLV705
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names TLV70509YFPR-ND,296-51725-6,296-51725-2,296-51725-1
Standard Package 3,000
Win Source Part Number 1100194-TLV70509YFPR
Ultra Librarian 3D Model Ultra Librarian TLV70509YFPR CAD Model

Description

The TLV70509YFPR is a state-of-the-art low-dropout (LDO) voltage regulator from Texas Instruments, designed to deliver high performance in a compact package. This LDO is specifically engineered to provide a stable and reliable power supply for sensitive electronic components, making it an ideal choice for a wide range of applications, including portable devices, wearables, and Internet of Things (IoT) products.

Key Features

  • Output Voltage: This device provides a fixed output voltage of 0.9V, which is crucial for powering low-voltage digital cores and subsystems with precision.
  • High Accuracy: With an output voltage accuracy of ±2%, the TLV70509YFPR ensures that the components receive a consistent voltage, minimizing the risk of malfunction due to power supply variations.
  • Low Dropout: The low dropout feature of this LDO allows it to continue delivering a stable output even when the input-to-output voltage differential is minimal, making it highly efficient in battery-powered applications.
  • Current Capability: It can supply up to 200mA of load current, which is suitable for a variety of low-power devices and circuits.
  • Thermal Performance: The device is available in a 4-pin, 1.2 x 1.2mm DSBGA package, which offers excellent thermal performance and occupies minimal board space.
  • Power-Saving Modes: It features an active output discharge circuit and supports a low quiescent current in shutdown mode, contributing to power conservation in battery-operated devices.
  • Protection Features: The TLV70509YFPR includes overcurrent protection and thermal shutdown protection, enhancing the reliability and longevity of the end product.

Applications

This LDO is versatile and can be used in a variety of applications where stable and efficient power delivery is critical. It is particularly well-suited for:

  • Smartphones and tablets
  • Wearable technology such as smartwatches and fitness trackers
  • Wireless sensors and IoT devices
  • Portable medical equipment
  • Energy-harvesting systems

The TLV70509YFPR is a testament to Texas Instruments' commitment to providing innovative power management solutions that meet the needs of modern electronic devices. With its combination of precision, efficiency, and compact form factor, this LDO is an excellent choice for designers looking to optimize the performance and battery life of their products.
