The Texas Instruments TLV9004IDR is a high-performance, quad operational amplifier that is designed to meet a wide range of application requirements. This op-amp is part of the TLV900x family, which is known for its low-voltage operation and rail-to-rail input/output performance, making it an ideal choice for battery-powered and portable applications.

Key Features

• Low-Voltage Operation: The TLV9004IDR operates at a supply voltage range from 1.8V to 5.5V, which is suitable for various low-voltage applications.
• Rail-to-Rail Input/Output: This feature allows the amplifier to handle input signals that range from the power supply rails to the ground, as well as to output signals that swing from rail to rail.
• Low Input Offset Voltage: The device boasts a low input offset voltage, which enhances accuracy in precision applications.
• Low Power Consumption: With a quiescent current of just 400 µA per channel, the TLV9004IDR is optimized for power-sensitive applications.
• High Gain Bandwidth Product: A GBWP of 1 MHz enables the op-amp to be used in a variety of applications requiring moderate bandwidth.
• Extended Temperature Range: The device is operational over an extended temperature range from -40°C to +125°C, making it suitable for industrial environments.

Applications

The TLV9004IDR is versatile and can be employed in a multitude of applications, including:

• Portable and battery-powered devices
• Sensor signal conditioning
• Active filtering
• Medical instrumentation
• Consumer electronics
• Power supply control

Package and Quality

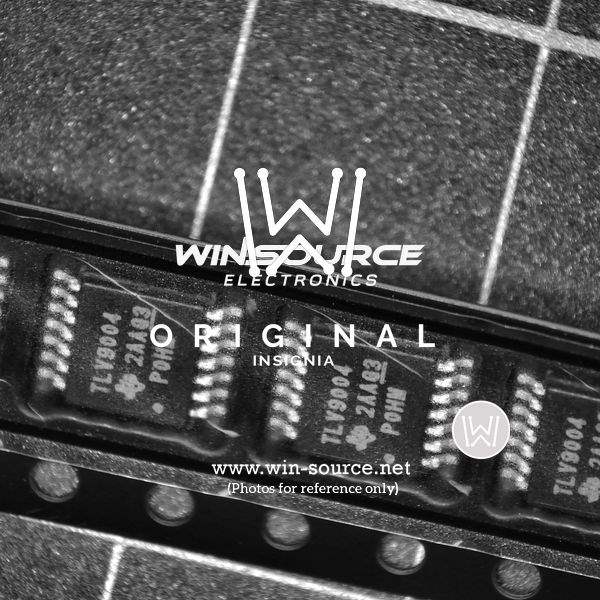

The TLV9004IDR is available in a compact 14-pin SOIC package, which is suitable for space-constrained applications. It is also RoHS compliant and follows Texas Instruments' commitment to quality and environmental management, ensuring reliability and eco-friendly operation.

Conclusion

With its low-voltage operation, rail-to-rail input/output, and low power consumption, the Texas Instruments TLV9004IDR is an excellent choice for designers looking for a versatile op-amp that delivers reliable performance across a range of applications. Its robust design and operational flexibility make it a valuable component in any electronics designer's toolkit.
