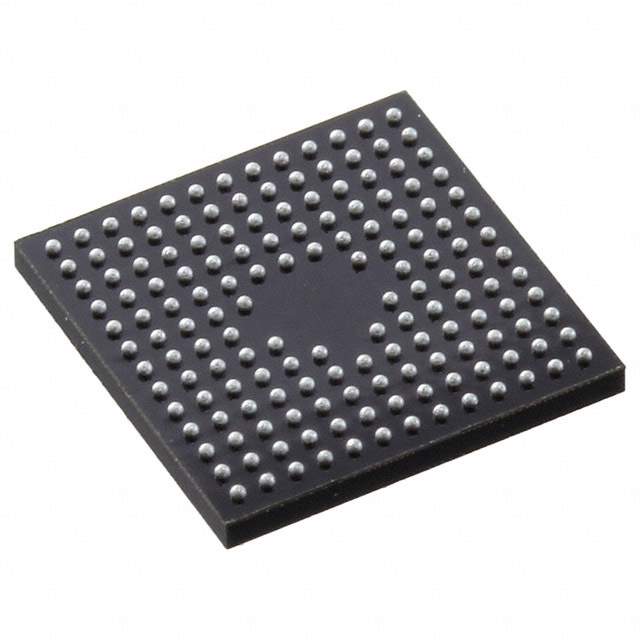

The TM4C123BH6ZRBI is a high-performance ARM Cortex-M4F based microcontroller from Texas Instruments, designed for a broad range of applications. This microcontroller is part of the Tiva™ C Series, which is well-regarded for its robust performance, connectivity features, and power efficiency.

Key Features

• Core: The device is built around a 32-bit ARM Cortex-M4F core with a floating-point unit (FPU) which operates at speeds up to 80 MHz, delivering exceptional computing power and efficiency.
• Memory: It comes with 256 KB of flash memory and 32 KB of SRAM, providing ample space for complex applications and data storage.
• Communication: The microcontroller offers a range of communication interfaces including USB 2.0 Full-Speed Device/Host/OTG, UARTs, SSI/SPI, I2C, and CAN for versatile connectivity options.
• GPIO: With up to 43 general-purpose I/O (GPIO) pins, it provides flexibility in peripheral and device control.
• Timers: It features a wide array of timers including six 32-bit and six 16-bit timers, as well as PWM outputs for precise timing and control tasks.
• Analog: The TM4C123BH6ZRBI includes analog capabilities such as 12-bit ADCs with sample rates up to 1 MSPS, and analog comparators, supporting sophisticated analog functionalities.
• Power Management: The device has integrated power management that supports a range of power-saving modes, enabling energy-efficient operation for battery-powered and power-sensitive applications.

Applications

This microcontroller is suitable for a diverse array of applications, such as industrial control systems, home and building automation, automotive and transportation systems, consumer electronics, and healthcare devices. Its robust set of peripherals and interfaces make it ideal for interfacing with sensors, actuators, communication modules, and human-machine interfaces.

Development Support

Developers can take advantage of Texas Instruments' comprehensive development ecosystem, which includes development kits, software libraries, and support tools to accelerate the design and development process. The TM4C123BH6ZRBI is supported by the TivaWare™ software suite, which provides a rich set of drivers and middleware to streamline application development.
