Products specifications Report Issue?

Category Sensors, Transducers - Temperature Sensors - Analog and Digital Output
Mfr Texas Instruments
Package Tape & Reel
Product Status Active
Sensor Type Digital, Local
Sensing Temperature - Local -55°C ~ 125°C
Output Type I²C/SMBus
Voltage - Supply 1.7V ~ 5.5V
Resolution 12 b
Features One-Shot, Shutdown Mode
Accuracy - Highest (Lowest) ±1.5°C (±2°C)
Test Condition -25°C ~ 100°C (-55°C ~ 125°C)
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number TMP1075
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 851719-TMP1075DR
Ultra Librarian 3D Model Ultra Librarian TMP1075DR CAD Model

Description

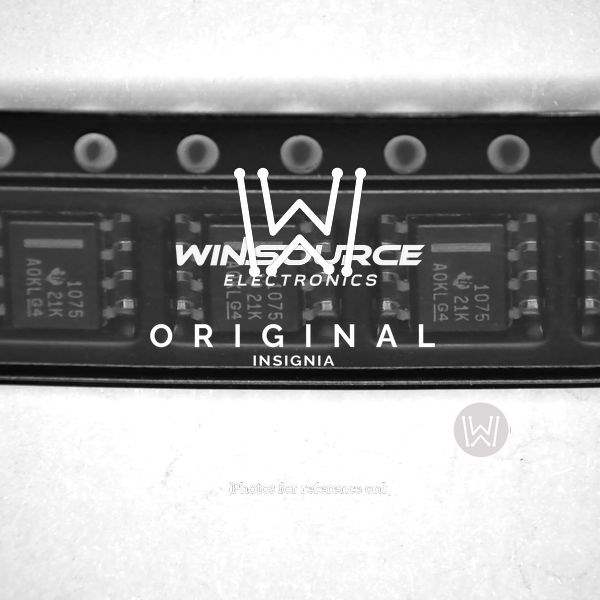

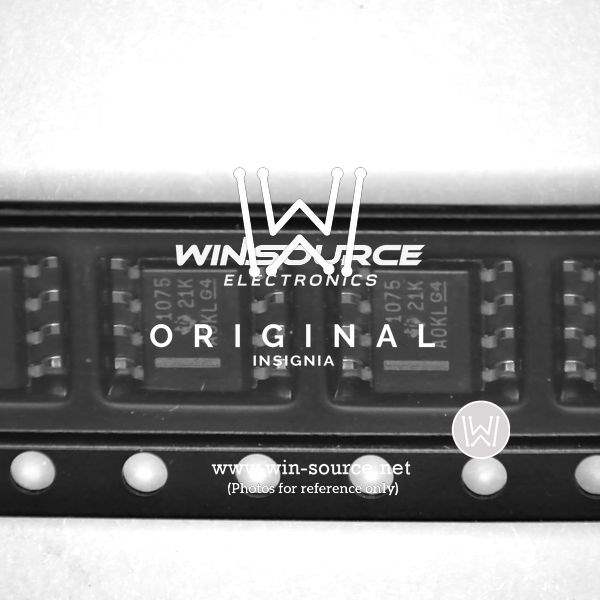

Product Overview: TMP1075DR by Texas Instruments

The TMP1075DR is a state-of-the-art temperature sensor from Texas Instruments, designed to provide precise temperature measurements in a variety of electronic applications. This sensor is part of TI's extensive portfolio of temperature monitoring solutions, and it offers improvements over the popular LM75 and similar temperature sensors.

Key Features

  • Accuracy: The TMP1075DR offers an impressive accuracy of ±1°C (max) from -40°C to +125°C, ensuring reliable temperature readings for critical applications.
  • Supply Voltage: It operates over a wide supply voltage range from 1.4V to 3.6V, making it versatile for various circuits and power conditions.
  • Interface: Communication with the sensor is achieved through a two-wire, I2C and SMBus interface, which is compatible with most microcontrollers and allows for easy integration into existing designs.
  • Programmable Resolution: The TMP1075DR features programmable resolution from 9-bits to 12-bits, giving designers the flexibility to optimize for power and speed requirements.
  • Low Power Consumption: With its low power consumption, the TMP1075DR is ideal for battery-powered and power-sensitive applications.
  • Small Package: The device is available in a small, 8-pin MSOP package, which is beneficial for space-constrained applications.

Applications

The TMP1075DR is suitable for a broad range of applications, including:

  • Environmental monitoring and HVAC systems
  • Electronic test and measurement equipment
  • Battery management systems
  • Data center and server room environmental controls
  • Personal electronics and wearable devices

Reliability and Support

Texas Instruments is known for its commitment to quality and reliability, and the TMP1075DR is no exception. TI provides comprehensive technical support and documentation for this product, including detailed datasheets, application notes, and design resources to assist developers in implementing this temperature sensor into their projects with confidence.
