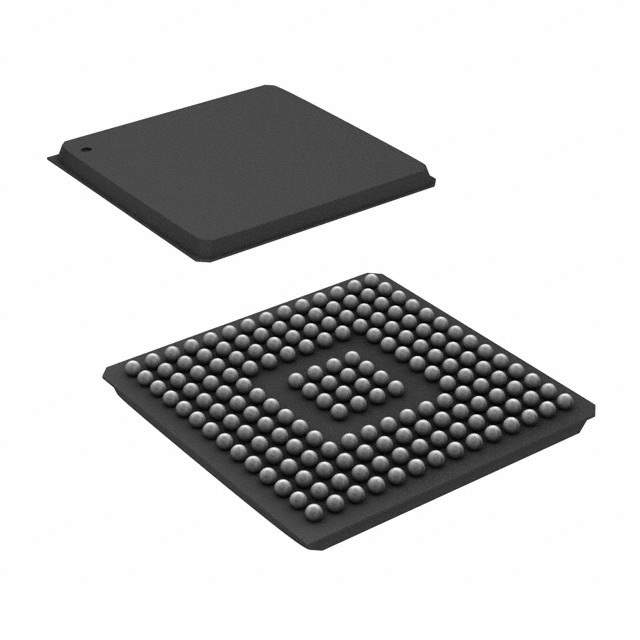

The TMS320F28334ZJZS is a high-performance digital signal processor (DSP) from Texas Instruments, designed to meet the demanding requirements of embedded control applications. This DSP is part of the TMS320F2833x series, which is known for its advanced features and capabilities in processing speed and precision.

Key Features:

• High-Performance Processing: With a 32-bit CPU running at 150 MHz, this DSP is capable of executing up to 300 million instructions per second (MIPS). This makes it suitable for high-speed control algorithms and real-time data processing.
• Integrated Memory: The TMS320F28334ZJZS comes equipped with 256 KB of Flash memory and 34 KB of RAM, providing ample space for code and data storage.
• Robust Peripherals: A variety of peripherals are integrated, including multiple 32-bit timers, a 12-bit analog-to-digital converter (ADC) with 16 channels, and serial communication interfaces such as SCI (UART), SPI, CAN, and I2C.
• Enhanced Control Peripherals: It includes enhanced PWM outputs and capture inputs specifically designed for motor control and other high-performance power electronics applications.
• Flexible I/O: The device supports up to 88 GPIO pins, providing flexibility for interfacing with external devices and systems.
• JTAG Interface: For ease of programming and debugging, the DSP includes a JTAG interface.

Applications:

The TMS320F28334ZJZS is ideal for a wide range of applications, such as:

• Industrial automation and control systems
• Motor control (AC Induction, Brushless DC, Stepper, Servo)
• Smart grid and renewable energy systems
• Automotive control systems
• Audio and voice processing
• Medical instrumentation

With its combination of performance, memory, peripherals, and I/O capabilities, the TMS320F28334ZJZS is a versatile DSP that can handle complex algorithms and provide real-time control for a variety of high-end applications. Its robust design and industry-leading features make it a reliable and efficient solution for engineers looking to optimize their control systems.
