Product Overview: TMUX1111PWR from Texas Instruments

The TMUX1111PWR is a high-performance, precision analog switch from Texas Instruments, designed to provide exceptional signal fidelity and switching efficiency for a wide array of applications. This device is part of the TMUX series, which is renowned for its low on-resistance and low crosstalk, making it an ideal choice for multiplexing and signal routing in complex electronic systems.

Key Features

• Low On-Resistance: The TMUX1111PWR boasts an exceptionally low on-resistance (Ron), typically around 0.5 ohms, which minimizes signal distortion and power loss, ensuring high signal integrity.
• Wide Operating Voltage Range: This switch operates over a wide voltage range from 1.08V to 5.5V, accommodating various logic levels and making it versatile for both single and dual supply operations.
• Single-Supply Operation: It is optimized for single-supply operation, allowing for seamless integration into modern low-voltage systems.
• Break-Before-Make Switching: The TMUX1111PWR features break-before-make (BBM) switching, which prevents signal overlap during channel transitions and protects against short-circuiting.
• ESD Protection: The device includes robust Electrostatic Discharge (ESD) protection, ensuring reliability and longevity even in harsh electrical environments.
• Low Leakage Current: It exhibits low leakage currents, enhancing the precision of analog signal processing and measurement applications.

Applications

The TMUX1111PWR is suitable for a multitude of applications, including but not limited to:

• Data acquisition systems
• Test equipment and instrumentation
• Audio and video signal routing
• Analog device calibration
• Communication systems

Package and Quality

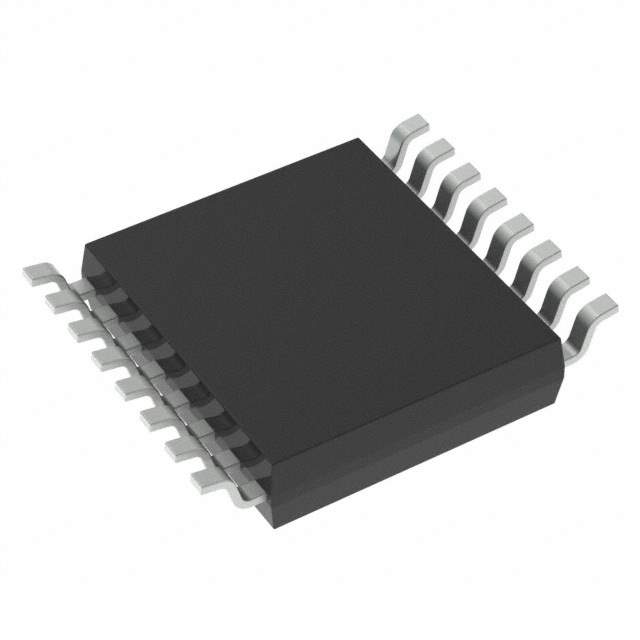

Encased in a compact TSSOP (Thin Shrink Small Outline Package), the TMUX1111PWR offers a space-saving solution without compromising performance. The device is also RoHS compliant and adheres to Texas Instruments' stringent quality standards, ensuring reliable operation in commercial and industrial temperature ranges.

Whether you're designing sophisticated measurement equipment or looking to streamline your signal processing architecture, the TMUX1111PWR from Texas Instruments is a switch that stands out for its precision, efficiency, and versatility.
