The TMUX6136PWR is a state-of-the-art analog multiplexer from Texas Instruments designed to cater to a wide range of applications requiring efficient signal routing. This precision multiplexer is part of TI's reliable and robust switch and multiplexer product line, ensuring high performance in signal switching.

Key Features

• Low On-Resistance: The TMUX6136PWR features a low on-resistance (Ron) that typically stands at 5 ohms, which minimizes signal distortion and ensures a high signal integrity.
• Low Charge Injection: With its low charge injection, this multiplexer reduces the glitch impulse during signal switching, making it ideal for precision applications.
• Single Supply Operation: It operates on a single supply voltage ranging from 4.5V to 30V, or a dual supply of ±4.5V to ±20V, offering flexibility in various circuit designs.
• Multiple Channels: The device provides six channels (1:6 multiplexer/demultiplexer configuration), allowing for multiple signal routing options within a single package.
• Bidirectional Operation: Signals can pass in both directions through the switch, making the TMUX6136PWR versatile for multiplexing and demultiplexing applications.
• Wide Operating Temperature: It can operate over a broad temperature range from -40°C to +125°C, suitable for industrial environments.
• Break-Before-Make Switching: This feature prevents signal overlap during channel-to-channel transitions, thus avoiding shorting and signal degradation.

Applications

The TMUX6136PWR is well-suited for a variety of applications, including data acquisition systems, industrial equipment, test and measurement setups, and any system where high-precision signal routing is required. Its robust design and performance make it an excellent choice for designers looking to enhance their system's signal integrity and reliability.

Package and Quality

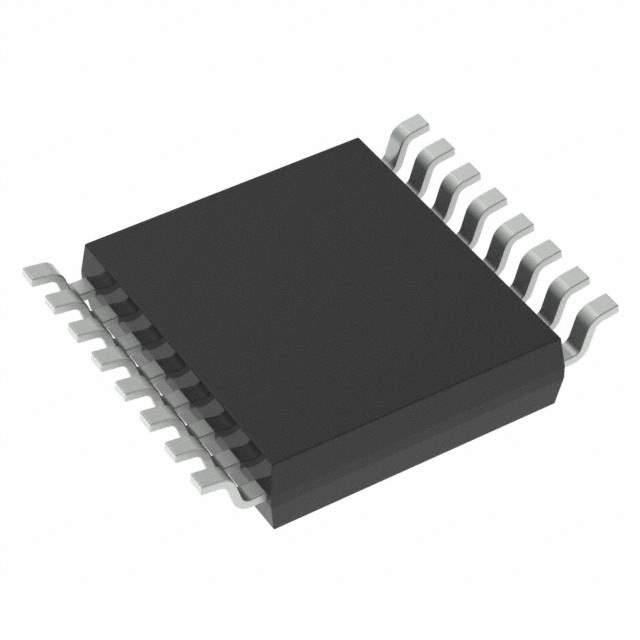

This component comes in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, providing a compact form factor for space-constrained applications. The TMUX6136PWR is also RoHS compliant, ensuring adherence to environmental standards regarding hazardous substances.

For more detailed information, specifications, and application notes, visit the Texas Instruments official website or consult the TMUX6136PWR datasheet.
