TPD2E007YFMRG4 by Texas Instruments

The TPD2E007YFMRG4 is a state-of-the-art transient voltage suppressor (TVS) diode array from Texas Instruments, designed to provide a high level of protection for sensitive electronic components against electrostatic discharge (ESD) and other voltage-induced transient events. This compact and efficient device is a crucial component for safeguarding high-speed data lines and I/O ports in a wide range of applications.

Key Features

• ESD Protection: The TPD2E007YFMRG4 offers excellent ESD protection, ensuring that electronic devices remain safe from sudden and extreme voltage spikes. It can withstand ESD strikes exceeding the IEC 61000-4-2 (Level 4) standard, offering ±8 kV contact and ±15 kV air-gap discharge protection.
• Low Capacitance: With a low loading capacitance of just 0.8 pF (typical), this TVS diode array is ideal for protecting high-speed data lines without significantly affecting signal integrity. This makes it suitable for applications such as USB interfaces, HDMI, and other high-speed data buses.

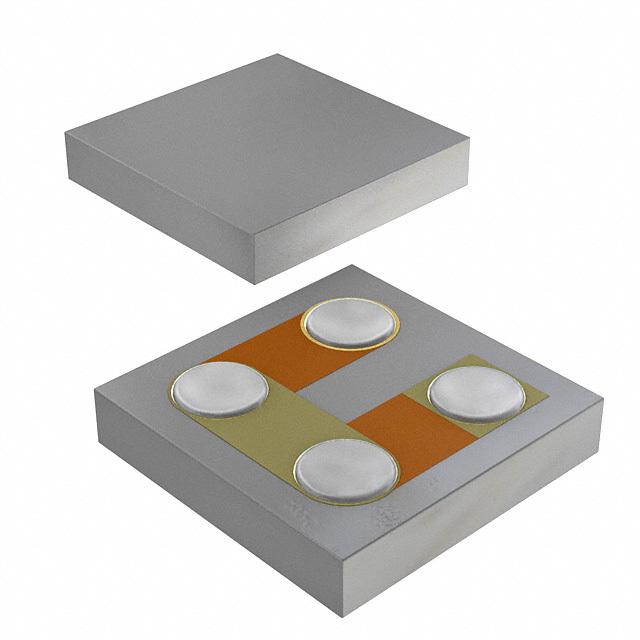

• Small Package Size: The device comes in an ultra-small YFM package, which is highly space-efficient, making it a perfect fit for compact electronic designs where board space is at a premium.
• Low Leakage Current: It features a low leakage current of less than 1 µA (maximum) at the working voltage, contributing to the overall energy efficiency of the end application.
• RoHS Compliant: The TPD2E007YFMRG4 is compliant with RoHS standards, ensuring that it meets the environmental and safety requirements by restricting the use of certain hazardous substances in electrical and electronic equipment.

Applications

The versatile nature of the TPD2E007YFMRG4 makes it suitable for a variety of applications, including:

• Mobile Phones and Portable Electronics
• Computers and Peripherals
• Consumer Electronics
• Networking Devices and Telecommunications Equipment
• Set-Top Boxes and Digital TVs

With its robust protection capabilities and minimal impact on signal performance, the TPD2E007YFMRG4 from Texas Instruments is an indispensable component for designers looking to enhance the durability and reliability of their electronic products.
