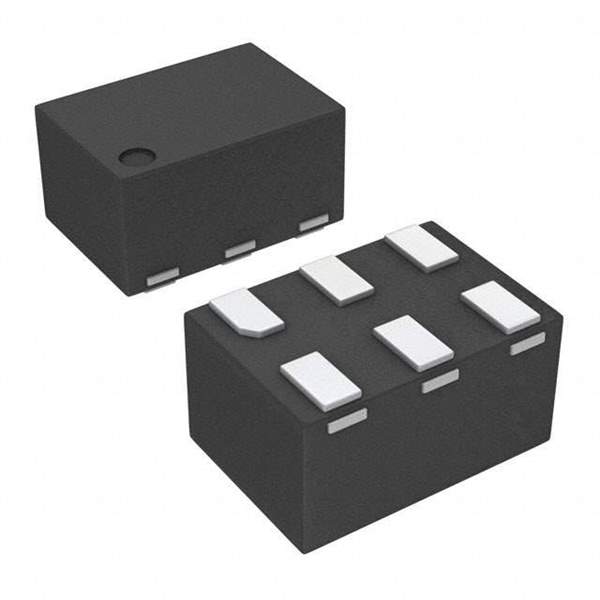

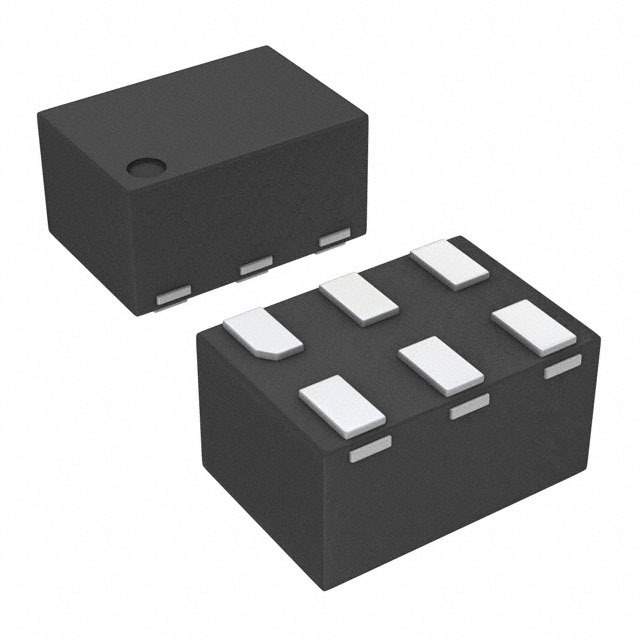

Overview of Texas Instruments TPD4E001DPKR

The TPD4E001DPKR by Texas Instruments is a robust, low-capacitance ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This compact and efficient solution is ideal for a variety of applications, including USB interfaces, video lines, mobile handsets, and other portable electronics where space is at a premium and protection is essential.

Key Features

• Low Clamping Voltage: The TPD4E001DPKR offers a low clamping voltage, ensuring that sensitive circuits are well protected from ESD strikes without compromising signal integrity.
• IEC Compatibility: The device complies with the IEC 61000-4-2 (ESD) standard, ensuring it meets international requirements for ESD protection.
• Low Capacitance: With a capacitance of only 0.8 pF (typical), it is particularly suitable for protecting high-speed data lines without distorting the signal.
• Multi-Line Protection: The TPD4E001DPKR can protect up to four lines, making it a versatile choice for a range of applications.
• Compact Package: Housed in a tiny DPKR package, this device saves valuable board space without sacrificing performance.

Applications

• USB 2.0 and 3.0 Power and Data Line Protection
• LVDS, HDMI, DisplayPort, and Thunderbolt Interfaces
• Serial and Parallel Interfaces
• Mobile Handsets and Portable Electronics
• Video Line Protection

Product Benefits

The TPD4E001DPKR's low-capacitance design ensures that high-speed signals are transmitted with minimal attenuation or distortion, making it an excellent choice for protecting interfaces such as USB, HDMI, and other communication ports. Its ability to withstand ESD strikes up to ±8 kV (Contact) and ±15 kV (Air-Gap) discharge as per the IEC 61000-4-2 standard, provides robust protection for sensitive electronics. The device's small form factor is particularly beneficial for modern, compact electronic assemblies where space is a critical constraint.

Conclusion

With its combination of high-performance ESD protection, low capacitance, multi-line versatility, and compact packaging, the Texas Instruments TPD4E001DPKR is an ideal solution for designers looking to enhance the durability and reliability of their high-speed data interfaces in space-constrained applications.
