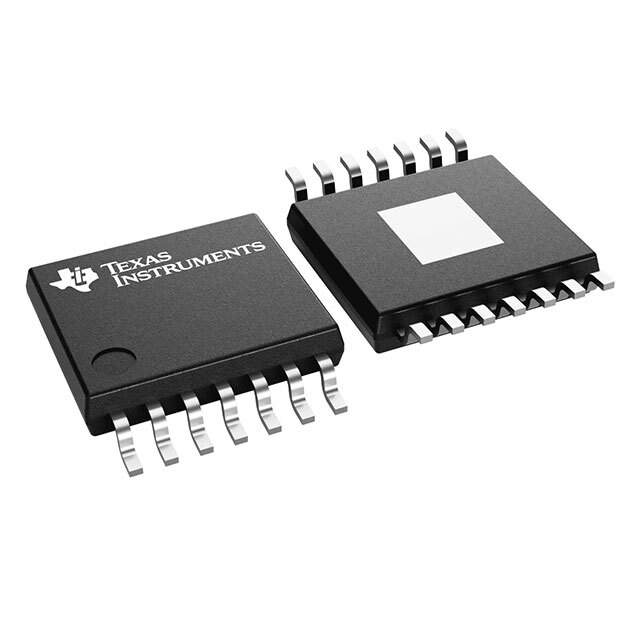

Introducing the TPS1HC100BQPWPRQ1 from Texas Instruments

The TPS1HC100BQPWPRQ1 is a robust, high-performance automotive-grade integrated circuit developed by Texas Instruments, designed to cater to the demanding requirements of the automotive industry. This advanced device falls under the category of High-Side Switches, which are essential components in modern vehicle electrical systems.

Key Features

• High-Side Switch: The TPS1HC100BQPWPRQ1 operates as a high-side switch, ensuring that the power switch is placed between the supply and the load, providing a safer disconnection and better protection against short circuits.
• Automotive Grade: With its AEC-Q100 qualification, this device is guaranteed to perform reliably in the harsh environments typical of automotive applications, including a wide temperature range and exposure to vibrations and shocks.
• Smart Protection: The TPS1HC100BQPWPRQ1 includes smart protection features such as over-current, over-temperature, and under-voltage lockout, which help to safeguard the system and ensure long-term reliability.
• Diagnostic Capabilities: Diagnostic feedback is a crucial aspect of this device, providing system designers with critical information about the state of the switch and the load, enabling more sophisticated control and monitoring.

Applications

The versatility of the TPS1HC100BQPWPRQ1 allows it to be used in a wide array of automotive applications such as:

• Powertrain systems
• Body control modules
• Advanced driver-assistance systems (ADAS)
• Automotive lighting systems

Technical Specifications

Some of the notable technical specifications of the TPS1HC100BQPWPRQ1 include:

• Operating voltage range tailored for automotive applications
• Robust output current capabilities
• Low power consumption in standby mode
• Compact and efficient packaging suitable for space-constrained applications

With its combination of high reliability, protection features, and diagnostic capabilities, the TPS1HC100BQPWPRQ1 from Texas Instruments stands out as a premier choice for automotive electronic designers looking to enhance system performance and safety.
