Product Overview: Texas Instruments TPS2051CDBVR

The TPS2051CDBVR from Texas Instruments is a robust, single-channel, current-limited integrated high-side power switch designed for USB and other applications. It is part of Texas Instruments' power distribution switch family, which is renowned for providing reliable protection for systems and peripheral devices.

Key Features

• Current Limit: This device offers a precise current limit to protect the system from overcurrent conditions. It is capable of delivering up to 1.5A of continuous current, making it suitable for a wide range of applications.
• Operating Voltage: The TPS2051CDBVR operates over an input voltage range of 2.7V to 5.5V, accommodating common system voltages and allowing for flexibility in various design scenarios.
• Thermal and Short-Circuit Protection: The device includes thermal shutdown protection and short-circuit protection, enhancing system safety by preventing damage from excessive heat or circuit malfunctions.
• Built-In Charge Pump: The integrated charge pump allows for drive capability on the open-drain fault flag, providing a signal in case of a fault condition.
• Controlled Rise Time: The TPS2051CDBVR features a controlled rise time, reducing inrush current and thereby mitigating potential system voltage drops on power-up.

Applications

• USB hubs, peripherals, and powered ports
• Battery-Charger Circuits
• Hot-Swap Power Management
• Portable Electronics
• Industrial and Medical Equipment

Product Packaging and Quality

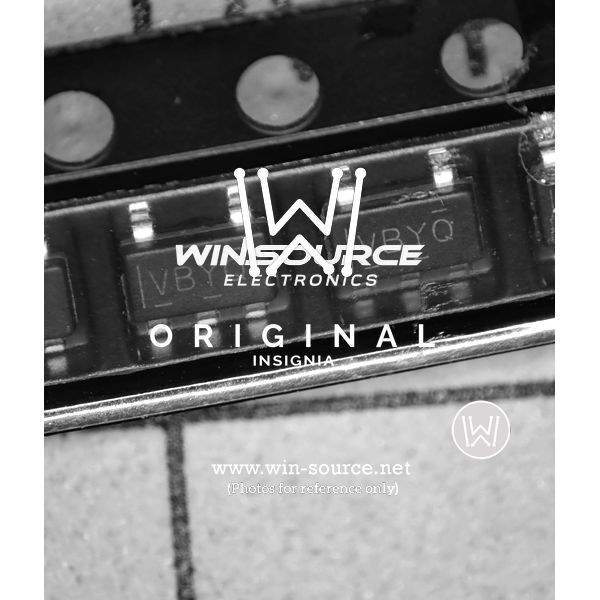

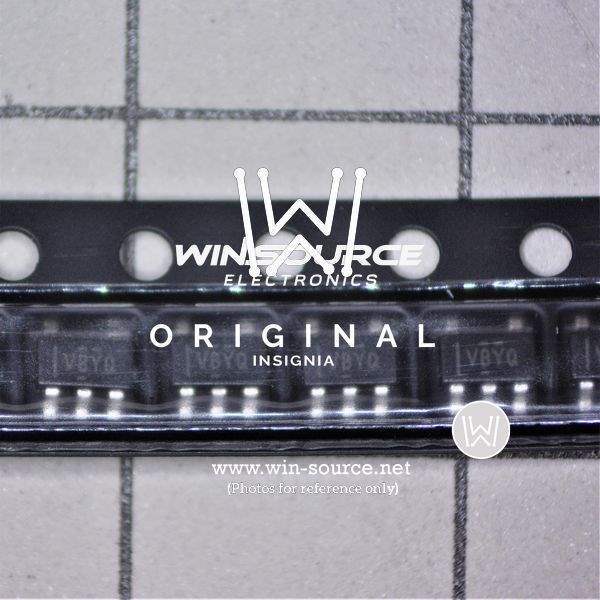

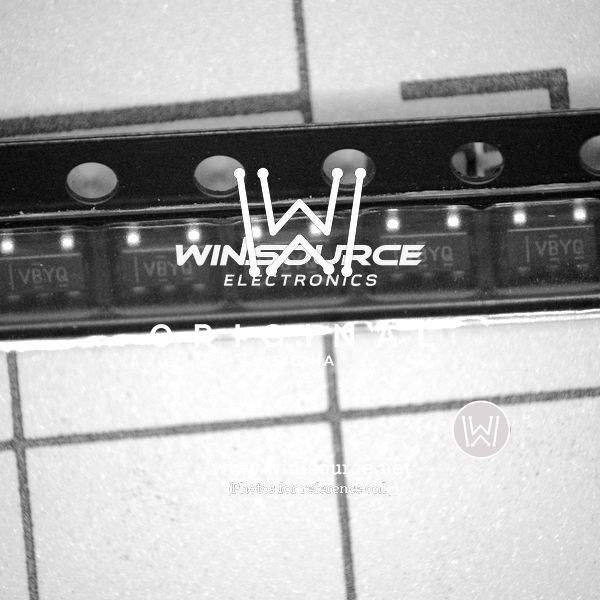

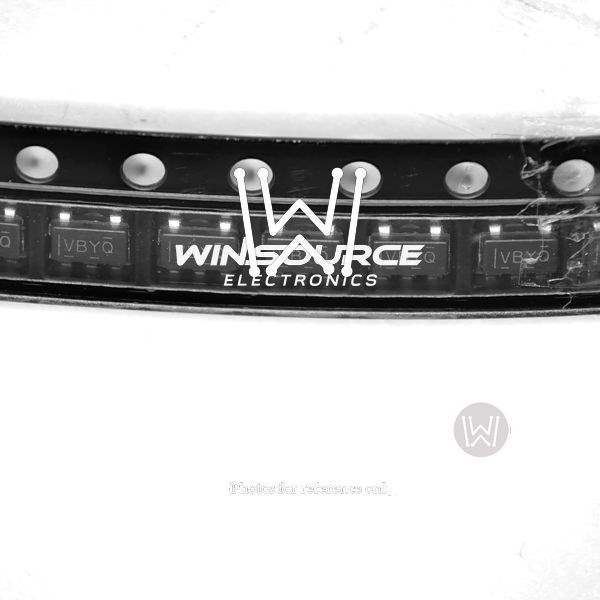

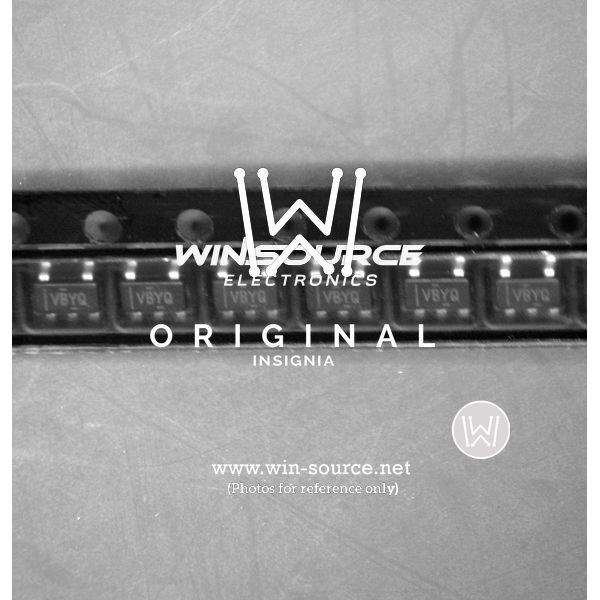

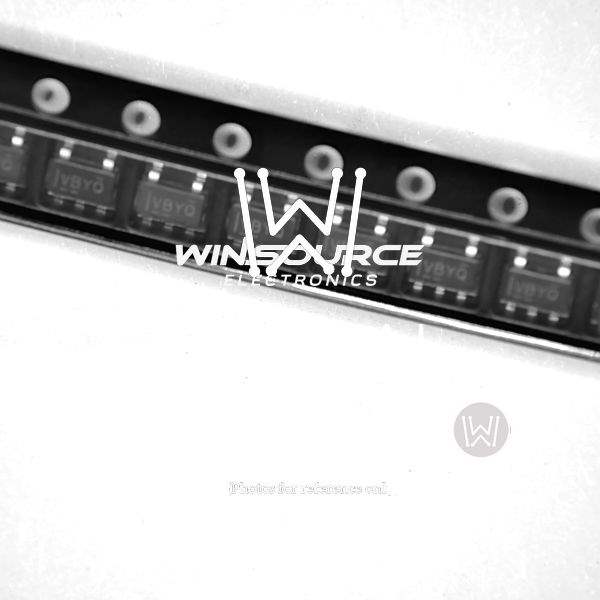

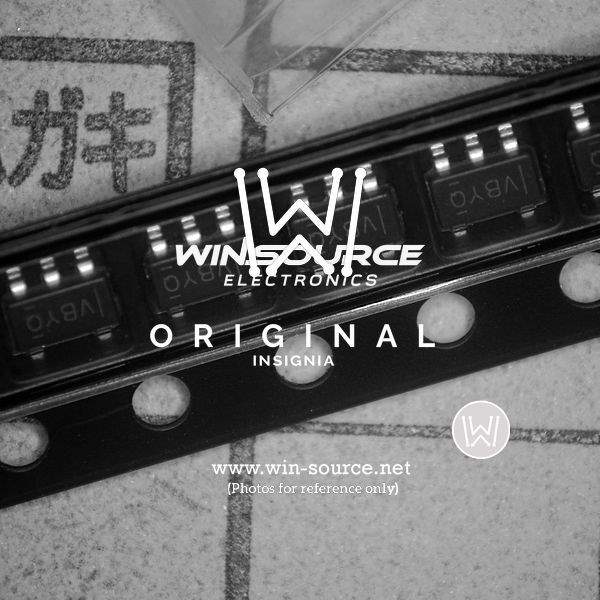

Housed in a compact SOT-23-6 package, the TPS2051CDBVR is designed for space-constrained applications. Texas Instruments ensures high-quality standards, and this product is compliant with RoHS directives, making it suitable for use in environmentally sensitive applications. The small form factor, coupled with Texas Instruments' commitment to quality, makes the TPS2051CDBVR a reliable choice for power management solutions.

Design Support

Texas Instruments provides extensive design support for the TPS2051CDBVR, including technical documentation, reference designs, and simulation tools. Designers can access a wealth of resources to accelerate the development process and ensure the successful integration of this power switch into their applications.
