TPS2201IDFR

Part No TPS2201IDFR
Manufacturer Texas Instruments
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC DUAL PCMCIA PWR SW 30-SSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Switch Type PCMCIA Switch
Number of Outputs 4
Voltage - Load 3.3V, 5V, 12V
Supply Voltage - Operating 4.75 V to 5.25 V
Current - Output (Max) 1A
Rds On (Typ) 160 mOhm (Max)
Features Power Good, Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature
Temperature Range - Operating -40°C to 85°C (TA)

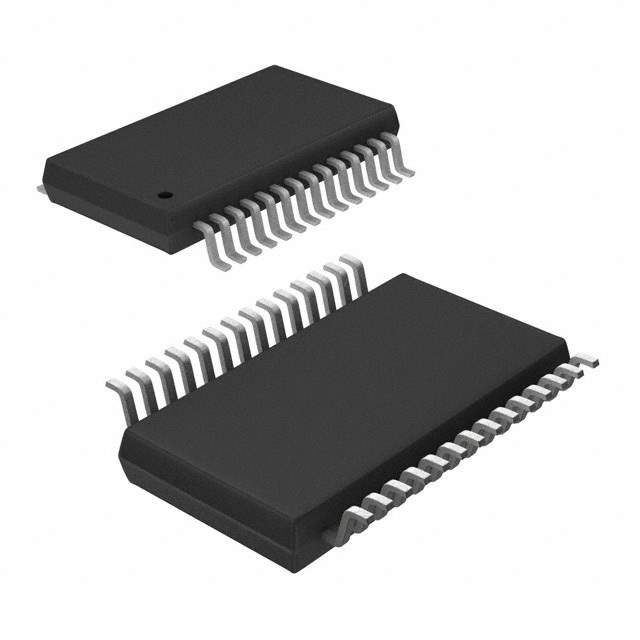

Case / Package 30-SSOP
Win Source Part Number 125588-TPS2201IDFR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TPS2201IDFR CAD Model

Description

The TPS2201IDFR is a versatile and robust integrated circuit designed by Texas Instruments, renowned for its high-quality electronic components. This particular chip falls under the category of power management ICs, specifically designed to facilitate efficient power distribution and management within electronic systems.

Key Features

  • Dual-Slot Power Interface Switch: The TPS2201IDFR is capable of managing power for two separate slots, making it an ideal choice for systems that require simultaneous power control over multiple peripherals or devices.
  • Current Limiting: Built-in current limiting features protect the system from overcurrent conditions, ensuring the longevity and reliability of both the power switch and the system it serves.
  • Thermal Shutdown: The device includes a thermal shutdown mechanism that prevents damage from overheating by automatically turning off the power if the temperature exceeds safe operating limits.
  • Under-Voltage Lockout (UVLO): The UVLO feature ensures that the device operates only when the supply voltage is within the specified range, preventing malfunctions due to insufficient power supply.

Applications

The TPS2201IDFR is suitable for a variety of applications, particularly where precise power distribution and management are critical. Common applications include:

  • Notebook computers
  • Hot-swap power supplies
  • PCMCIA and CardBus slots
  • Peripheral power control

Technical Specifications

Some of the key technical specifications of the TPS2201IDFR include a wide input voltage range, low on-resistance, and compact packaging:

  • Input Voltage Range: 2.7 V to 5.5 V
  • On-Resistance (Typical): 80 mΩ
  • Package: The device is available in a microSMD package, which is ideal for space-constrained applications.

Quality and Reliability

Texas Instruments is committed to delivering high-quality products. The TPS2201IDFR is manufactured to meet the highest standards of performance and reliability, ensuring that it meets the rigorous demands of industrial and commercial applications.
