Overview of Texas Instruments TPS22913BYZVR

The Texas Instruments TPS22913BYZVR is a high-performance, compact, single-channel load switch designed for power management applications. This device offers a low on-resistance, fast switching, and small footprint, making it ideal for portable and battery-powered devices where power efficiency and conservation are critical.

Key Features

• Low On-Resistance: The TPS22913BYZVR boasts an ultra-low on-resistance (R_ON), which minimizes power loss and improves overall efficiency when the switch is in the ON state.
• Input Voltage Range: It supports a wide input voltage range from 1.05V to 5.5V, making it versatile for various applications from low-voltage to standard 5V systems.
• Current Handling: With the ability to handle up to 2A of continuous current, it can support a range of loads from small sensors to larger peripheral devices.
• Quick Output Discharge: The device includes a quick output discharge (QOD) feature that rapidly discharges the output capacitance when the switch is turned off, preventing unwanted power residue in the system.
• Controlled Slew Rate: The TPS22913BYZVR has a controlled slew rate to reduce inrush current, minimizing the impact on the power source and surrounding circuitry at turn-on.

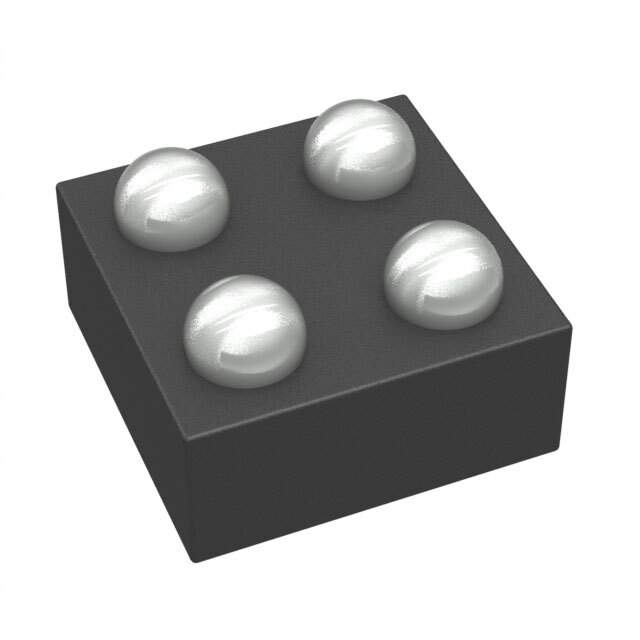

• Ultra-Small Package: It comes in an ultra-small, 1.2mm x 1.2mm, 4-ball wafer-level chip-scale package (WLCSP), which is ideal for space-constrained applications.

Applications

The TPS22913BYZVR is suitable for a variety of applications, including but not limited to:

• Smartphones and tablets
• Wireless peripherals and accessories
• Portable media players
• Wearable technology
• Internet of Things (IoT) devices

Reliability and Protection

Reliability is a cornerstone of Texas Instruments' products, and the TPS22913BYZVR is no exception. It incorporates several protective features such as over-temperature protection and under-voltage lockout (UVLO), ensuring the device operates within safe parameters. Additionally, the load switch is designed to be robust against ESD events, further enhancing its reliability in sensitive applications.

With its combination of efficiency, small size, and robust protection features, the TPS22913BYZVR from Texas Instruments is an excellent choice for designers looking to optimize power management in their next-generation electronic products.
