Product Overview: TPS22924BYZZR by Texas Instruments

The TPS22924BYZZR is a high-quality, ultra-small, low rON load switch manufactured by Texas Instruments (TI). This advanced component is designed for space-constrained and power-sensitive applications, delivering efficient power distribution and protection with minimal power loss.

Key Features

• Low On-Resistance: The device boasts a low on-resistance (rON) of only 28 mΩ at a 5V gate drive, optimizing power efficiency and reducing losses in the system.
• Input Voltage Range: It operates over an input voltage range of 1.5V to 5.5V, making it versatile for various low-voltage applications.

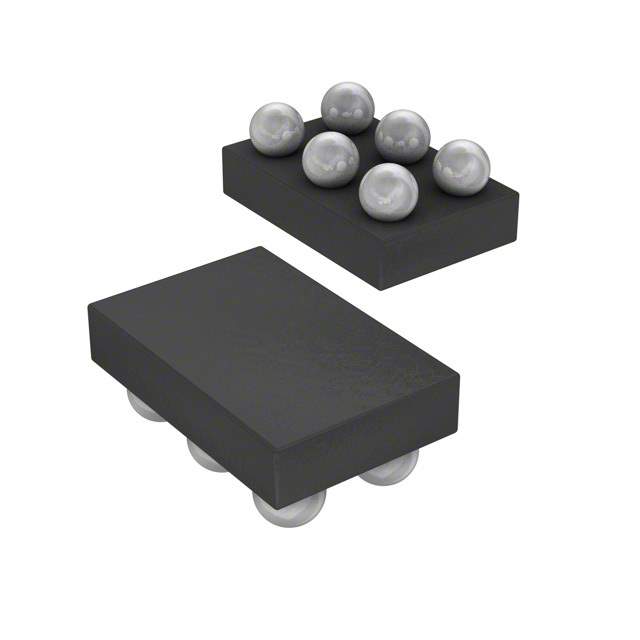

• Ultra-Small Package: The TPS22924BYZZR comes in an ultra-small, leadless 6-pin YZP package (1.5mm x 1mm), perfect for portable and space-constrained electronic devices.
• Quick Output Discharge: An integrated quick output discharge transistor ensures the output capacitance is discharged swiftly once the switch is turned off, preventing any unwanted power residue in the system.
• Controlled Slew Rate: The switch features a controlled slew rate to avoid inrush current, which can stress the system and lead to unnecessary power consumption.
• High Accuracy: The device's over-current and thermal protection features maintain high accuracy and reliability, safeguarding the system against excessive current and overheating.

Applications

The TPS22924BYZZR is ideal for a wide range of applications, including but not limited to:

• Smartphones, Tablets, and Wearable Technology
• Wireless Headsets and Audio Devices
• Portable Media Players and Gaming Devices
• Power Management Modules
• Energy Harvesting and Battery-Powered Systems

Why Choose the TPS22924BYZZR?

Engineers and designers opt for the TPS22924BYZZR for its exceptional performance in managing power in compact devices. Its low on-resistance ensures efficiency, while the small package size allows for greater design flexibility. Texas Instruments' commitment to quality and innovation makes the TPS22924BYZZR a reliable choice for cutting-edge electronic designs.
