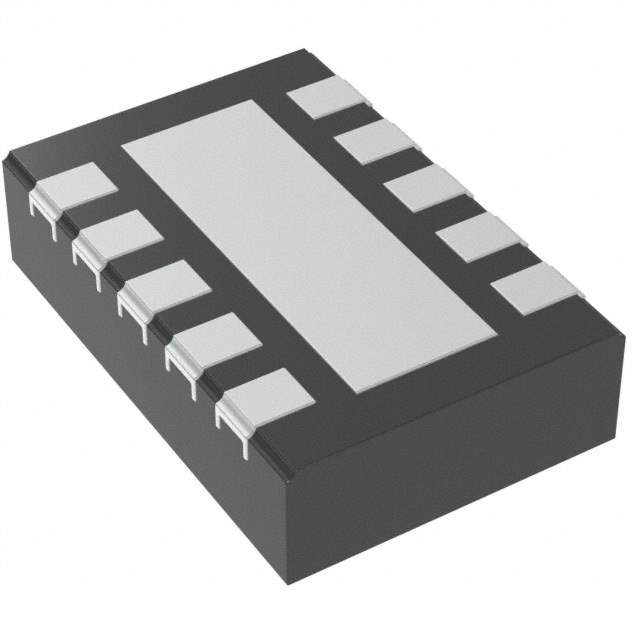

TPS22968QDMGRQ1

Part No TPS22968QDMGRQ1
Manufacturer Texas Instruments
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH N-CHAN 1:1 10WSON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 34 Weeks
Manufacturer Texas Instruments
Series Automotive, AEC-Q100
Package Reel - TR
Supply Voltage 2.5V ~ 5.5V
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 10-WFDFN Exposed Pad
Case / Package 10-WSON (3x2)
Family Name TPS22968
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number TPS22968QDMGRQ1-ND, 296-48729-2, 296-48729-1, 296-48729-6
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 900715-TPS22968QDMGRQ1
Ultra Librarian 3D Model Ultra Librarian TPS22968QDMGRQ1 CAD Model

Description

Overview of TPS22968QDMGRQ1

The TPS22968QDMGRQ1 is a high-performance, feature-rich load switch developed by Texas Instruments, designed to provide efficient power distribution and management in automotive and industrial applications. This device is part of TI's extensive range of power management solutions, specifically tailored to meet the stringent requirements of the automotive industry, including reliability and robustness.

Key Features

  • Input Voltage Range: The TPS22968QDMGRQ1 operates over a wide input voltage range from 1.1V to 5.5V, making it versatile for various automotive power rails.
  • Current Handling: It is capable of handling high continuous current up to 6A, ensuring reliable operation even under heavy loads.
  • Low On-Resistance: The device features an ultra-low on-resistance (RON) of typically 16 mΩ at 5V, which minimizes power loss and improves efficiency.
  • Quick Output Discharge: An integrated quick output discharge (QOD) feature allows for rapid deactivation of the output, enhancing system safety and preventing prolonged power consumption.
  • Protection Features: The TPS22968QDMGRQ1 includes over-temperature protection, under-voltage lockout (UVLO), and over-current protection (OCP), safeguarding the system against various fault conditions.
  • Adjustable Rise Time: An adjustable rise time reduces inrush current, which can be beneficial in sensitive applications where limiting the current surge is crucial.
  • Automotive Qualified: This device is AEC-Q100 qualified, ensuring it meets the automotive industry's reliability standards for electronic components.

Applications

The TPS22968QDMGRQ1 is ideally suited for a range of automotive applications, including infotainment systems, advanced driver-assistance systems (ADAS), body control modules, and other power distribution systems. Its robustness and high-performance characteristics also make it suitable for industrial and telecommunication equipment.

Package and Availability

It is available in a compact, space-saving 12-pin QFN package with a thermal pad for enhanced thermal performance. The part number TPS22968QDMGRQ1 indicates the automotive-grade version of the load switch, which is available for purchase through Texas Instruments and authorized distributors.

For detailed technical specifications, application notes, and support resources, designers and engineers are encouraged to visit the Texas Instruments website or contact their TI sales representative.
