Overview of Texas Instruments TPS40130DBTR

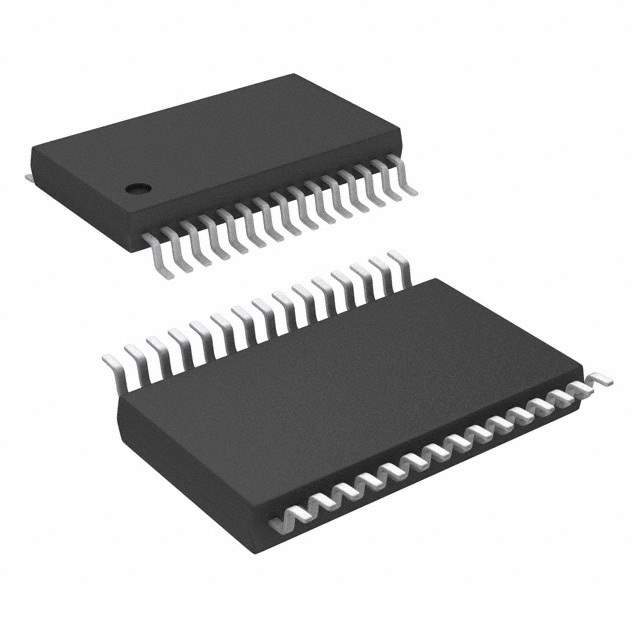

The TPS40130DBTR from Texas Instruments is a sophisticated, multi-phase synchronous buck controller designed for precision voltage regulation in a variety of applications. This high-performance integrated circuit is housed in a compact 30-TSSOP (DBT) package, making it suitable for space-constrained applications while delivering robust power management capabilities.

Key Features

• Multi-Phase Capability: The TPS40130DBTR can operate in multi-phase configurations, which allows for better load distribution and improved thermal performance.
• Wide Input Voltage Range: This controller supports an input voltage range from 4.5V to 15V, providing versatility for different power supply designs.
• Adjustable Output Voltage: The output voltage is adjustable, giving designers the flexibility to tailor the power supply to the specific needs of their application.
• Integrated Gate Drivers: With built-in gate drivers, the TPS40130DBTR can directly drive external MOSFETs, simplifying the design and reducing external component count.
• Programmable Switching Frequency: The switching frequency is programmable up to 600 kHz, allowing designers to balance efficiency and component size.
• Protection Features: This controller includes a suite of protection features such as over-voltage, under-voltage, over-current, and thermal shutdown, ensuring reliable operation and safeguarding against potential damage.

Applications

The TPS40130DBTR is ideal for a range of applications that require efficient power management. It is commonly used in computing systems, telecommunications equipment, and industrial systems where precise voltage regulation is critical for performance and reliability.

Design Support

Texas Instruments provides extensive design support for the TPS40130DBTR, including technical documentation, reference designs, and simulation tools. This support helps designers to accelerate their development process and achieve optimal performance from their power supply designs.

In conclusion, the TPS40130DBTR from Texas Instruments is a versatile and reliable solution for advanced power regulation. Its combination of multi-phase operation, wide input voltage range, and comprehensive protection features make it a top choice for designers looking to create efficient and durable power systems.
