Product Overview: TPS51220ARSNR from Texas Instruments

The TPS51220ARSNR is a high-performance, dual-channel synchronous step-down controller from Texas Instruments, designed for use in portable and compact computing devices. This advanced power management integrated circuit (IC) is specifically engineered to provide a highly efficient, reliable power solution for systems requiring multiple supply voltages.

Featuring a wide input voltage range from 5.5V to 28V, the TPS51220ARSNR allows for flexible deployment in various system architectures. It is capable of driving two channels with independent output voltages that can be adjusted to as low as 0.6V with a high accuracy of 1% over the entire temperature range. Its dual synchronous buck design ensures high efficiency at light loads through D-CAP™ mode, which provides a fast transient response, and supports pre-biased startup operations.

The TPS51220ARSNR incorporates a range of protective features to ensure the stability and safety of the power system. These include overvoltage protection (OVP), undervoltage protection (UVP), overcurrent protection (OCP), and thermal shutdown. The device also offers a selectable switching frequency from 200 kHz to 1 MHz, allowing designers to balance efficiency with external component size.

Furthermore, the TPS51220ARSNR supports advanced power-saving modes. Its automatic Eco-mode™ operation optimizes efficiency during light-load conditions, which is particularly beneficial for battery-powered applications. The device also features a shutdown mode that reduces supply current to a mere 3 µA, extending the battery life of the end product.

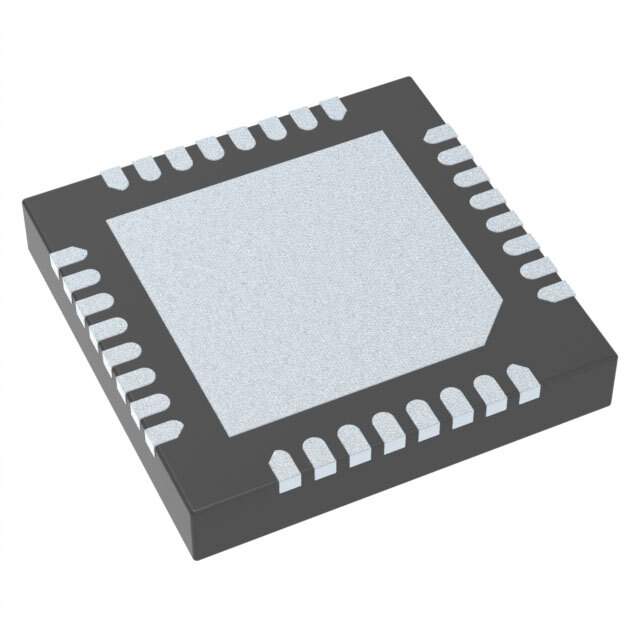

Available in a compact 32-pin QFN package, the TPS51220ARSNR is designed for space-constrained applications. It is a robust solution for creating efficient power management systems in notebooks, ultrabooks, netbooks, and other portable devices that demand high performance and long battery life.

The TPS51220ARSNR by Texas Instruments represents a blend of performance, efficiency, and reliability, making it an excellent choice for designers seeking a sophisticated power management solution.
