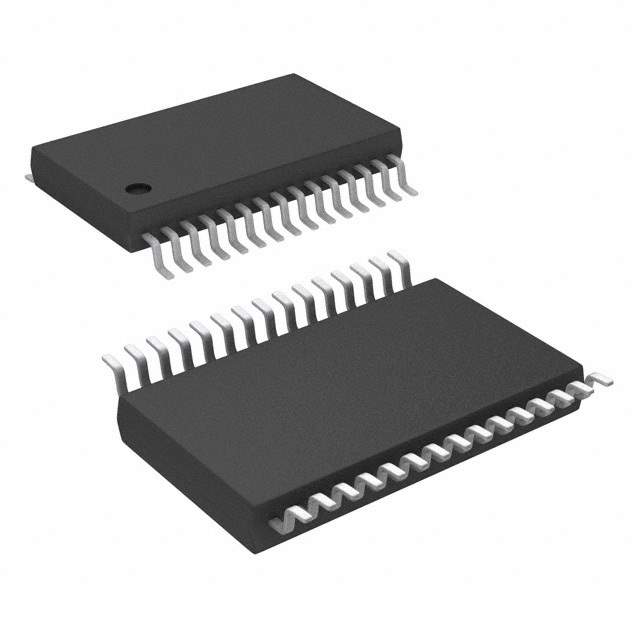

TPS5124DBT

Part No TPS5124DBT
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 30TSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Transistor Driver
Purpose Step-Down
Topology Buck
Number of Outputs 2
Output Phases 2
Supply Voltage - Operating 4.5 V to 15 V
Frequency - Switching 300kHz
Duty Cycle (Max) 80%
Synchronous Rectifier Yes
Clock Sync No
Control Features Enable, Power Good
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 30-TSSOP
Win Source Part Number 033995-TPS5124DBT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TPS5124DBT CAD Model

Description

TPS5124DBT Dual Synchronous Step-Down Controller from Texas Instruments

The TPS5124DBT is a high-performance, dual-channel synchronous buck controller designed by Texas Instruments. It is specifically engineered to provide a reliable power management solution for complex digital systems that require multiple supply voltages. The TPS5124DBT is ideal for applications in computing, telecommunications, and industrial markets.

Key Features:

  • Voltage Regulation: The device offers excellent voltage regulation with an input voltage range of 4.5V to 28V, ensuring consistent performance across various power levels.
  • Dual Outputs: It features two independent outputs that can be configured for 5-bit VID dual-output operation, making it versatile for different voltage requirements.
  • High Efficiency: With integrated MOSFET drivers and adaptive on-time control, the TPS5124DBT delivers high efficiency, reducing power loss and heat generation.
  • Adjustable Switching Frequency: The switching frequency is adjustable from 250kHz to 700kHz, allowing designers to optimize the performance based on the specific needs of their application.
  • Protection Features: It includes a comprehensive array of protection features such as overvoltage, undervoltage lockout, overcurrent, and thermal shutdown to ensure the safety and longevity of the end application.

Applications:

  • Notebook and Desktop Computers
  • Servers
  • Networking Equipment
  • Storage Systems
  • Graphic Cards
  • Other Electronic Devices Requiring Multiple Output Voltages

The TPS5124DBT is available in a 30-pin TSSOP (DBT) package, providing a compact solution that is easy to integrate into various circuit designs. Its advanced features and robust design make it a reliable choice for managing power requirements in sophisticated electronics.

For detailed technical specifications, application notes, and support resources, please visit the Texas Instruments website or contact their support team. The TPS5124DBT is a testament to Texas Instruments' commitment to providing innovative and efficient power management solutions.
