The TPS54060DGQR is a versatile and robust step-down voltage regulator from Texas Instruments, designed to deliver high efficiency and reliability for a wide range of applications. This efficient power management integrated circuit (IC) is capable of providing a continuous output current of up to 0.5 A, with an input voltage range from 3.5 V to 60 V, making it suitable for systems with varying power requirements.

Key Features

• Wide Input Voltage Range: Operates from 3.5 V to 60 V, accommodating a variety of power sources.
• Adjustable Output Voltage: Offers an output voltage range from 0.9 V to 90% of the input voltage, providing flexibility in design.
• High Efficiency: Integrated switching FET supports up to 90% efficiency, which is vital for thermal management and energy savings.
• Frequency Synchronization: Allows synchronization to an external clock to minimize electromagnetic interference (EMI).
• Thermal Shutdown: In-built thermal shutdown and overcurrent protection ensure safe operation under abnormal conditions.

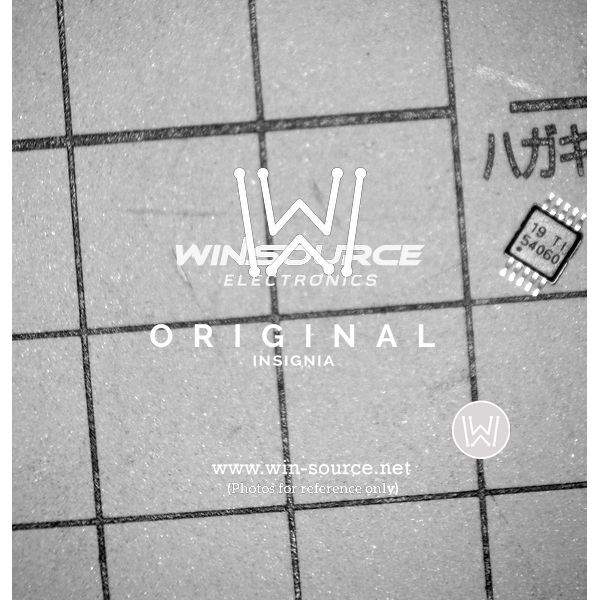

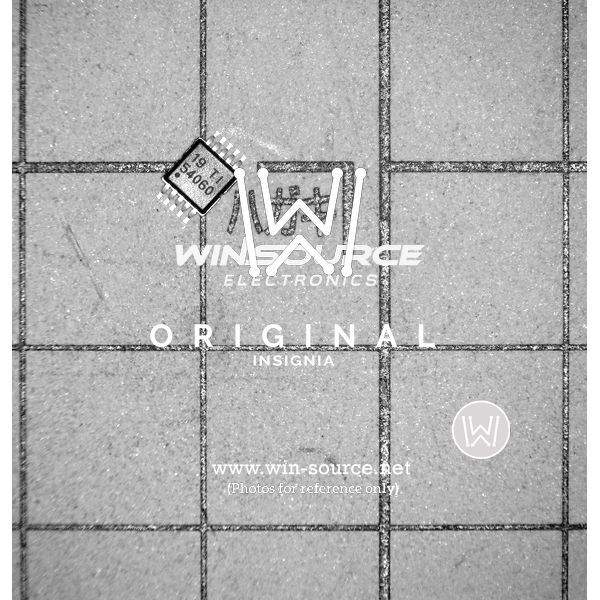

• Small Package: Available in a compact MSOP-10 (PowerPAD™) package, ideal for space-constrained applications.

Applications

The TPS54060DGQR is suitable for a broad range of applications, including but not limited to:

• Industrial Power Supplies
• Automotive Electronics
• Telecommunication Equipment
• Point of Load Conversions
• Consumer Electronics

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TPS54060DGQR is no exception. It is designed to meet the rigorous standards required for industrial and automotive applications, ensuring long-term reliability and performance.

Ordering Information

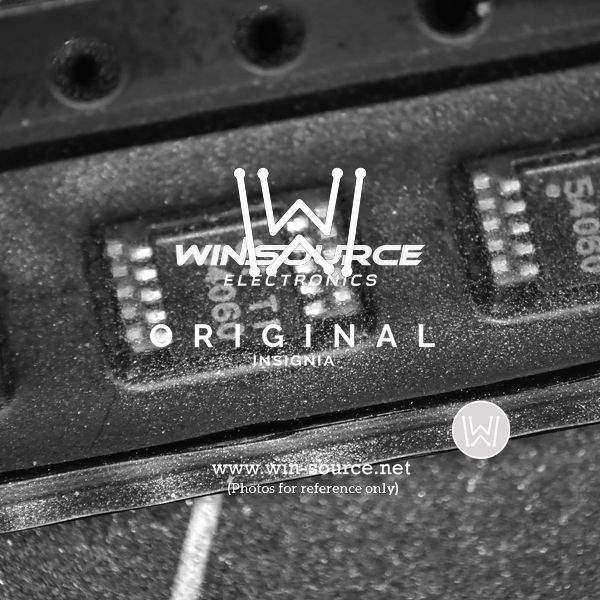

The part number TPS54060DGQR represents the device in the MSOP-10 (PowerPAD™) package and is available in tape and reel form for easy integration into manufacturing processes. For detailed specifications and ordering information, please refer to the official Texas Instruments datasheet.
