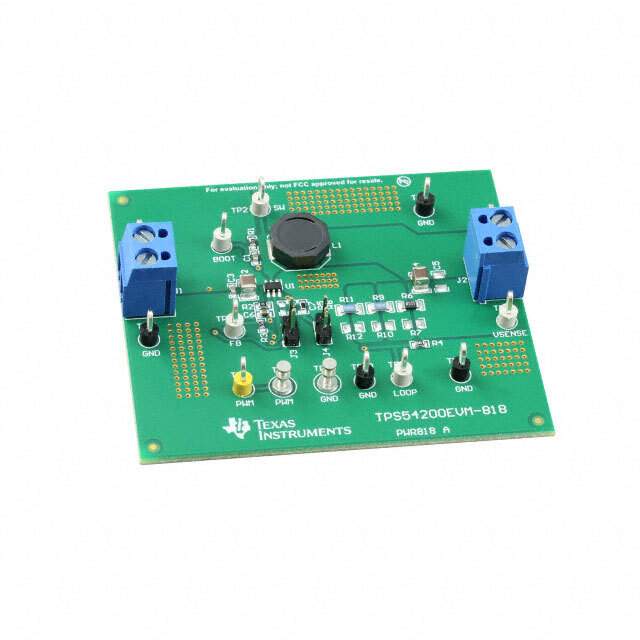

The TPS54200EVM-818 from Texas Instruments is a fully assembled and tested circuit for evaluating the TPS54200 Synchronous Step-Down DC/DC Converter. This evaluation module (EVM) is designed to help users quickly and easily assess the performance and functionality of the TPS54200 converter, which is capable of delivering up to 2A of output current.

Key Features

• Input Voltage Range: The TPS54200EVM-818 operates over a wide input voltage range from 4.5V to 28V, making it suitable for a variety of applications from industrial to automotive power systems.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 6V to suit the needs of their specific application.
• High Efficiency: The synchronous step-down converter design provides high efficiency and reduces power loss, which is critical for maintaining performance in power-sensitive designs.
• Integrated Features: The module includes features such as soft start, undervoltage lockout (UVLO), overcurrent protection (OCP), and thermal shutdown to ensure reliable operation under various conditions.

Applications

The TPS54200EVM-818 is versatile and can be used in a range of applications, including:

• Point of Load (POL) power supplies
• Aftermarket automotive supplies
• Embedded systems
• Industrial power systems

Design and Layout

The EVM features a compact design with high-quality components that ensure minimal signal interference and optimal performance. The layout is optimized for thermal performance and space efficiency, making it an excellent choice for testing in space-constrained applications.

Easy to Use

The TPS54200EVM-818 is designed for ease of use, with clear markings for all connections and onboard test points. It comes with comprehensive documentation, including a user guide that provides detailed instructions for operation and evaluation, making it accessible for both novice and experienced engineers.

Overall, the TPS54200EVM-818 Evaluation Module is an essential tool for designers and engineers who wish to test and implement the TPS54200 Synchronous Step-Down DC/DC Converter in their applications.
