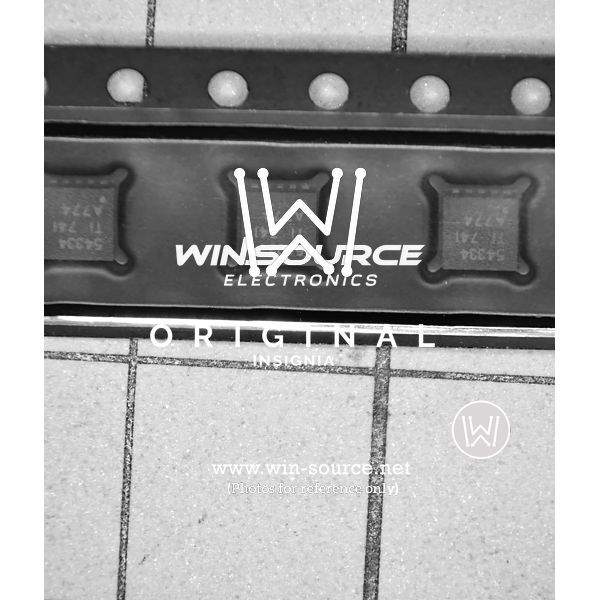

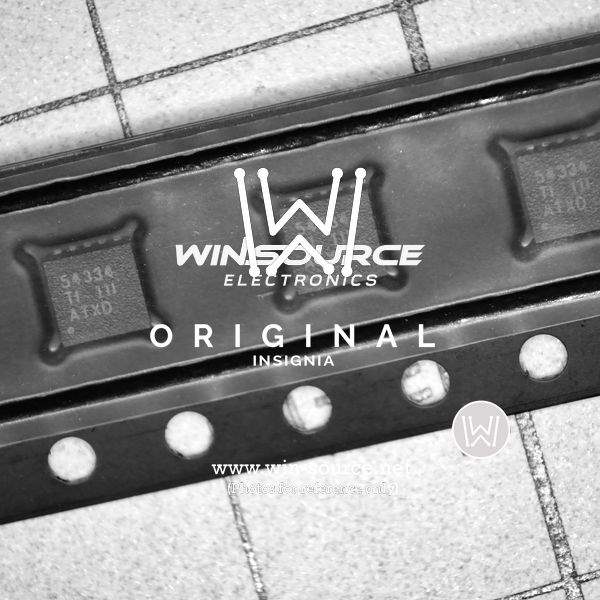

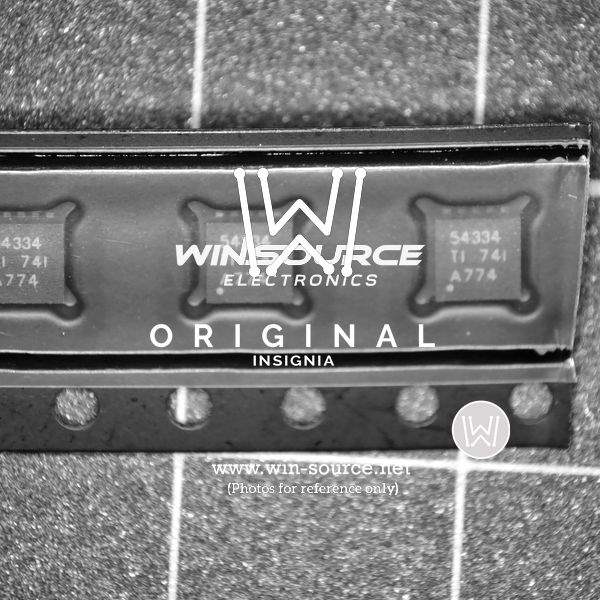

Product Overview: TPS54334DRCR by Texas Instruments

The TPS54334DRCR is a highly efficient, adaptive on-time D-CAP2™ mode synchronous buck converter from the reputable manufacturer Texas Instruments. This advanced power solution is designed to provide a seamless and reliable voltage conversion in a variety of electronic applications, including consumer electronics, networking, industrial, and automotive systems.

Key Features

• Input Voltage Range: The TPS54334DRCR operates over a wide input voltage range from 4.5V to 28V, making it versatile for various power supply scenarios.
• Output Voltage: The device is capable of providing an adjustable output voltage down to 0.8V with high accuracy, which is essential for powering today's low-voltage digital circuits.
• High Efficiency: With its D-CAP2™ mode control, the TPS54334DRCR offers fast transient response and high efficiency across a wide load range, ensuring optimal performance and power conservation.
• Thermal Management: The device includes an internal soft start to reduce inrush current during startup and thermal shutdown protection to safeguard against overheating.
• Integrated MOSFETs: The inclusion of high-side and low-side MOSFETs simplifies design and reduces external component count, while also providing continuous load current up to 3A.
• Compact Package: The TPS54334DRCR is available in a small 10-pin VSON package, which is ideal for space-constrained applications.

Applications

The versatile nature of the TPS54334DRCR makes it suitable for a broad range of applications, including:

• Point of Load (POL) power supplies
• Telecommunication equipment
• Networking equipment such as routers and switches
• Industrial and automation systems
• Aftermarket automotive accessories
• Portable electronics

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the TPS54334DRCR is no exception. It is designed to meet the rigorous demands of modern electronic devices, ensuring a reliable power solution for your application.
